Cortadora de plasma CNC sin alta frecuencia bestarc BTC800XP de 80 A

$899.99 USD $649.99 USD AHORRE 28 %

3 Year Warranty

Preventa, ¡ahorra 15% al ​​agregar al carrito!

Especificación del enchufe: EE. UU. (110/220 V)

EE. UU. (110/220 V)
Sin enchufe (220 V)
Sin enchufe (380 V)
Comparar

Features:

  1. Blow Back CNC plasma cutter
  2. Easy to Set Up, PT/2T/4T/PA Function
  3. IGBT Inverter Technology
  4. Built-in air filter
  5. Circuit Breaker Requirements:60A for 110V, 50A for 220V
Características y beneficios clave

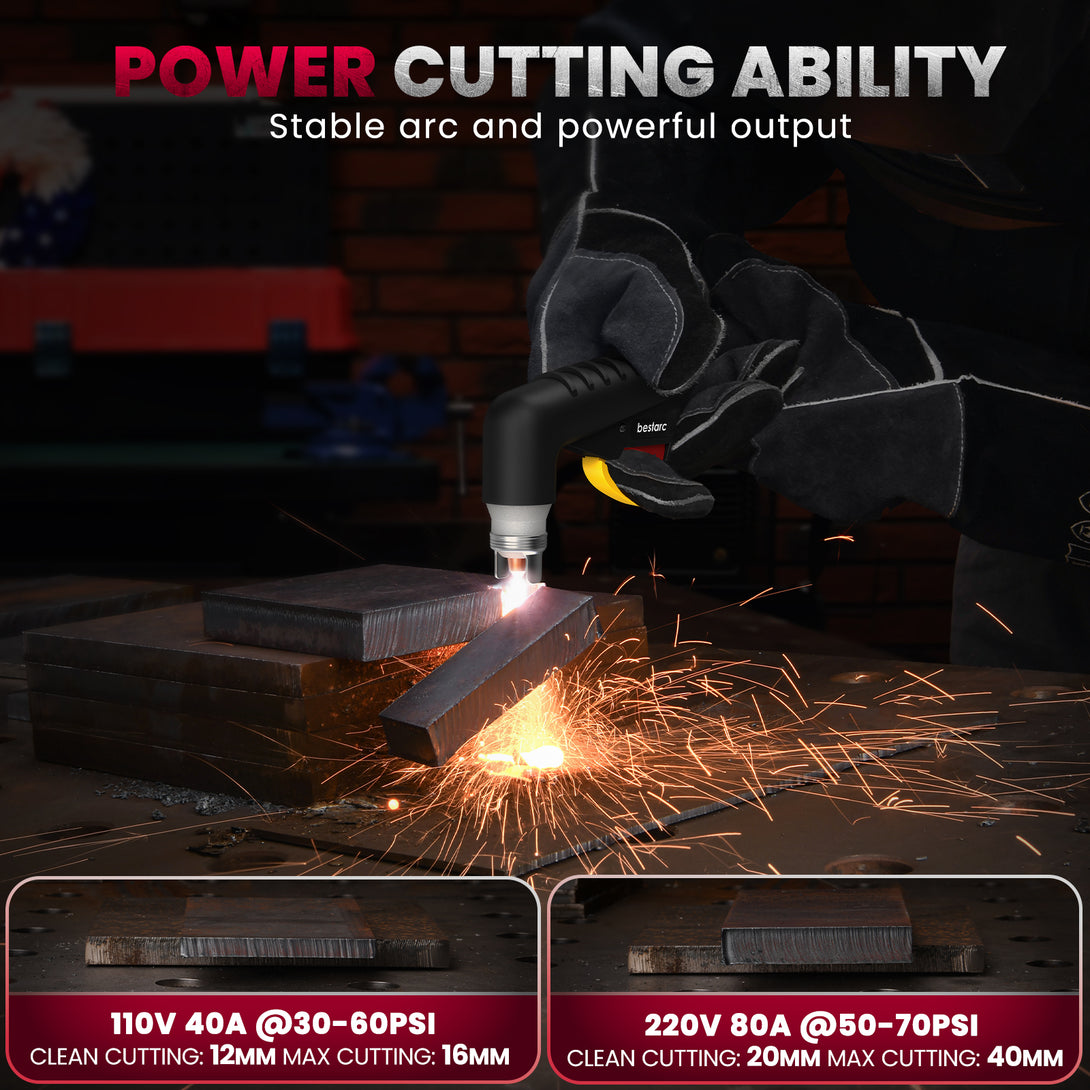

  • [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2”clean cuts on Iron, Steel aluminum and copper with Inverter IGBT Technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 5/8”(16mm)@40A 110V 60PSI; 1.57”(40mm)@80A 220V 70PSI. Dry and compressed air is required. Power breaker up to 60A@110V 40A; Up to 50A@220V 80A.

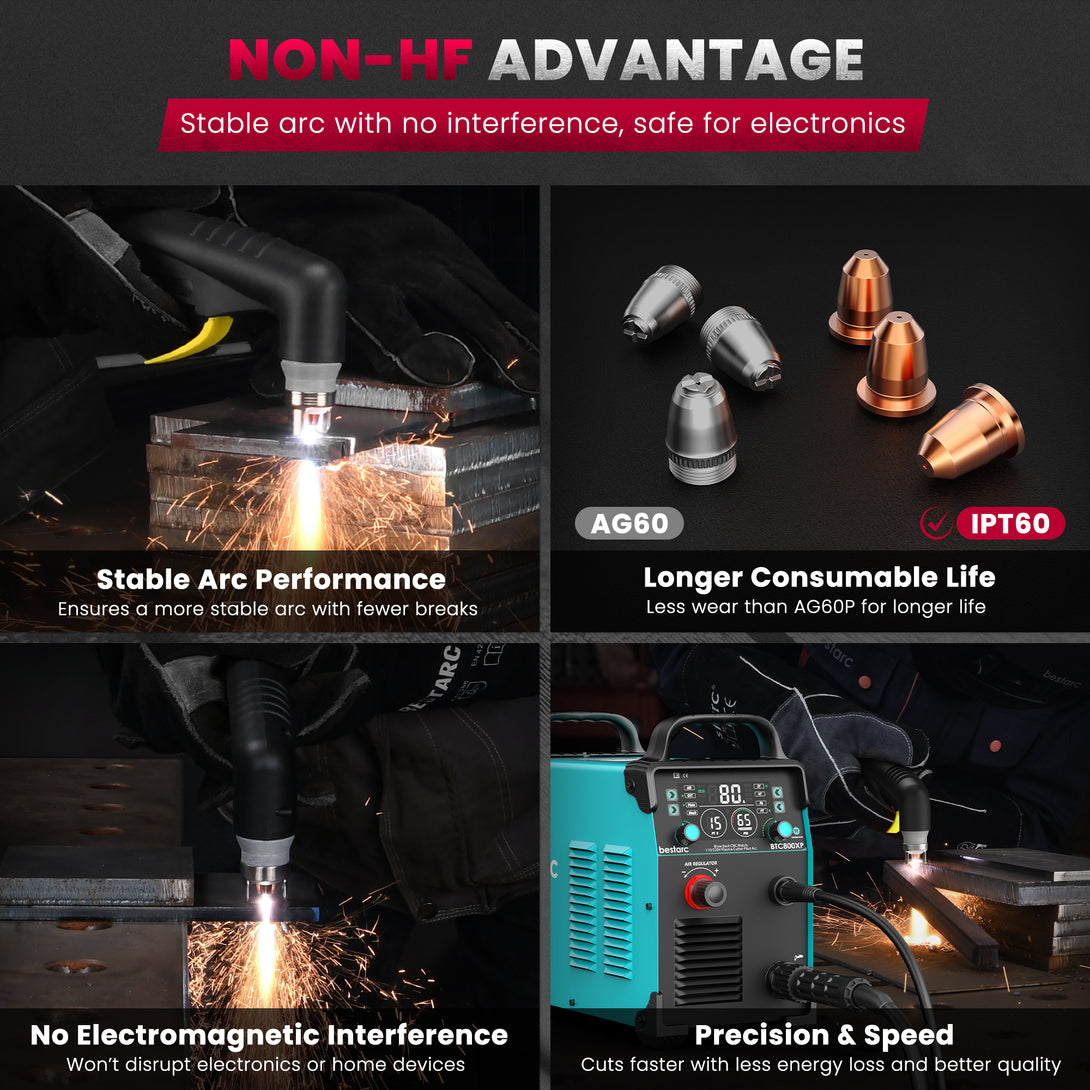

  • [Blow Back Pilot Arc]: Bestarc plasma cutter features a blow back Technology, Non-HF pilot arc with CNC capability, Which prevents high-frequency signal interference and enhances cutting stability, blow back pilot arc non-touch the metal start the arc, plasma cutter machine has two connection ports: 2-pin connector for arc voltage output (1:1 ratio) and 5-pin connector for signal control. This design makes it easy to work with CNC cutting tables.

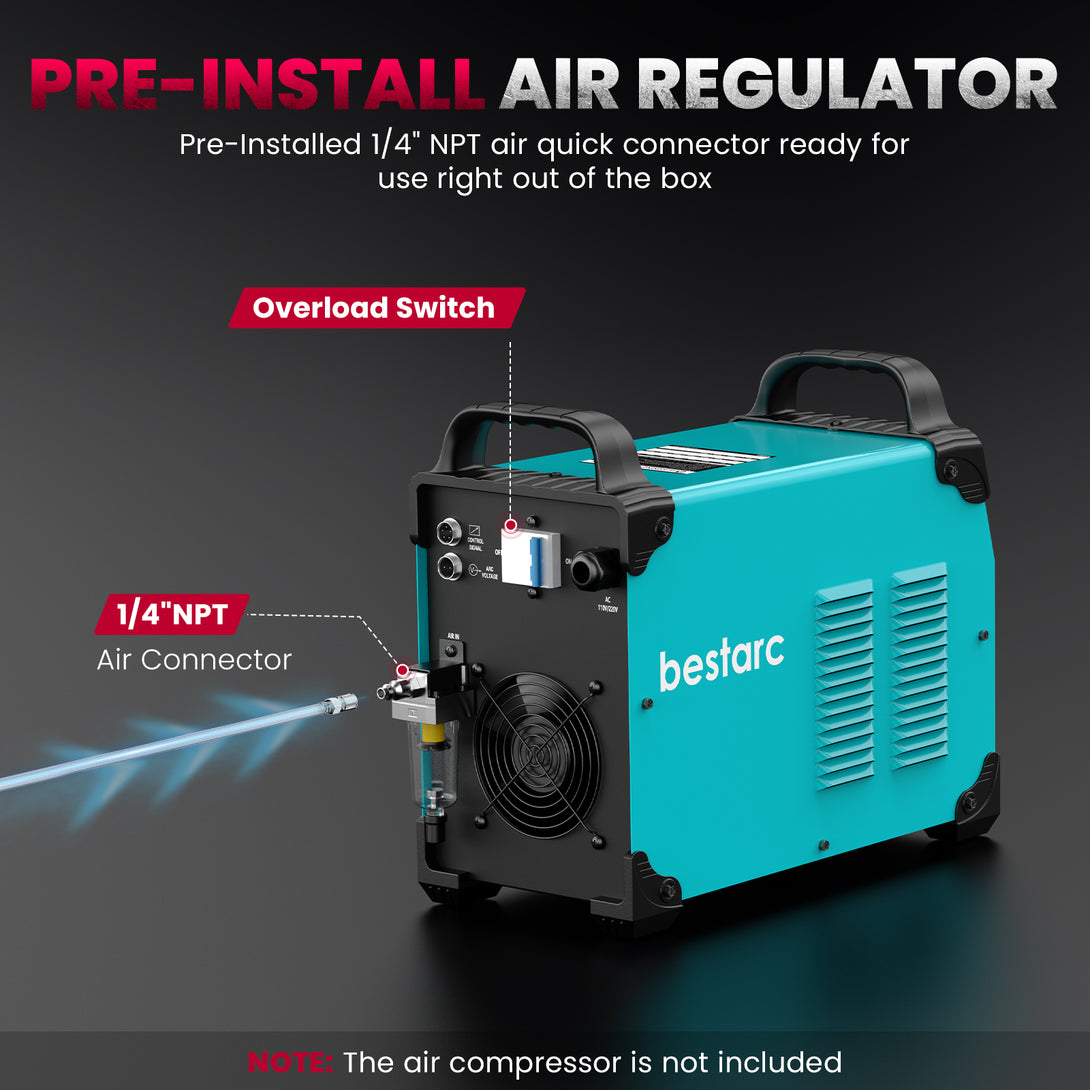

  • [Air Sensor Technology]: The air sensor built in machine displays air pressure on front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). Air filter is installed in the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.
  • [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.
  • [2T/4T/PA/PT Function]: Adjustable post flow (3-15s) cools the torch and extends consumable life. PA timing up to 15s for mesh cutting or longer consumable durability. 2T/4T mode enables flexible cutting control with reduced finger fatigue.
Package Included

1 x Plasma cutter
1 x Earth clamp with 10-25 plug
1 x Cutting torch
1 x Air hose
1 x Wire adaptor
2 x Aviation plug
2 x Hose clamp
2 xElectrode
2 x0.030" Nozzle
2 x0.043" Nozzle

Comprados juntos frecuentemente

Vista rápida Consumibles para cortadora de plasma IPT60, kit de 23 boquillas para antorcha de corte
Consumibles para cortadora de plasma IPT60, kit de 23 boquillas para antorcha de corte
$45.99 $46.99
Vista rápida Antorcha de corte por plasma CNC, antorcha recta de corte por plasma de arco piloto sin alta frecuencia IPTM60 IPTM80 de 20/32 pies
Antorcha de corte por plasma CNC, antorcha recta de corte por plasma de arco piloto sin alta frecuencia IPTM60 IPTM80 de 20/32 pies
$159.00
Vista rápida Soporte magnético para antorcha de soldadura TIG Bestarc, accesorios de soldadura MIG TIG con base magnética fuerte, tamaño pequeño
Soporte magnético para antorcha de soldadura TIG Bestarc, accesorios de soldadura MIG TIG con base magnética fuerte, tamaño pequeño
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Haz una pregunta
Descripción del Producto
Parámetro
Envío y devolución
Reseña del cliente
Video Review

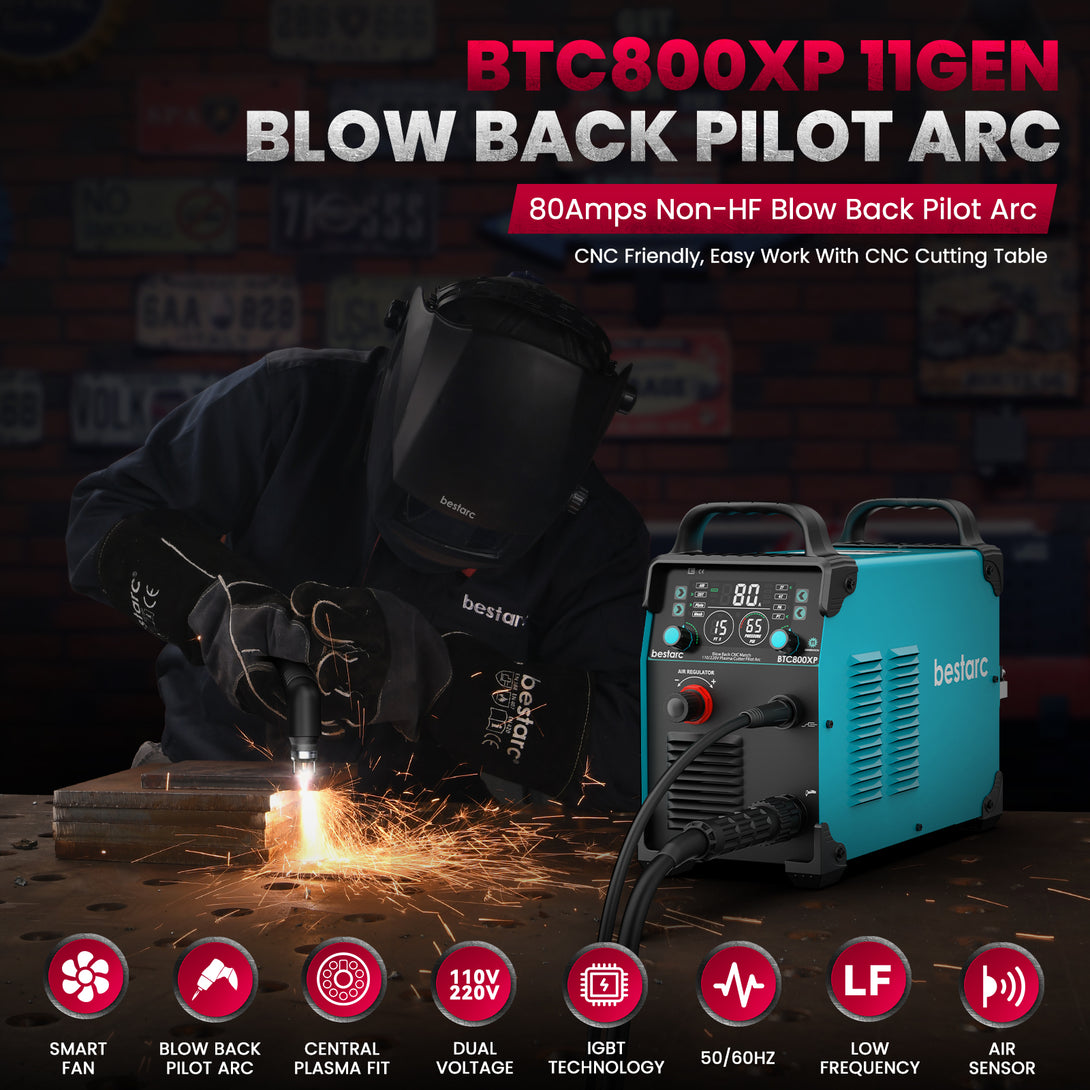

BESTARC BTC800XP 11.ª GEN

Arco piloto de retroceso

Función 2T/4T

Hora de publicación

Pantalla de superficie de corte

Función CNC

Pantalla digital

参数表格

Model BTC500DP 10GEN
220V 110/220V
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10% 220V ±15%
Duty Cycle @ 78°F (25°C) 60% 60%
Rated Power (KVA) 6.3 4.2 6.3
Input Current Range (A) 12 - 29 20 - 38.5 12 - 29
Output Current Range (A) 15 - 50 15 - 35 15 - 50
Rated Output Voltage (V) 100 94 100
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 30-60psi 20-40psi 30-60psi
Air Flow Rate (CFM) 150L/min 150L/min
Clean Cutting Thickness (mm) 14mm 10mm 14mm
Cutting Thickness Severance (mm) 16mm@65psi 12mm@65psi 16mm@65psi
Cutting Speed 10mm 200mm/min@65psi 150mm/min@65psi 200mm/min@65psi
Machine Dimensions (mm) 410*156*264mm 410*156*264mm
Shipping Weight (kgs) 5.7kgs 5.7kgs

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
wow

Which plasma cutter does it highly recommend .upgraded to this one from 500xp as it was out of stock nothing I regret came in about 7 days within ERUOPA

Descripción del Producto

BESTARC BTC800XP 11.ª GEN

Arco piloto de retroceso

Función 2T/4T

Hora de publicación

Pantalla de superficie de corte

Función CNC

Pantalla digital

Parámetro

参数表格

Model BTC500DP 10GEN
220V 110/220V
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10% 220V ±15%
Duty Cycle @ 78°F (25°C) 60% 60%
Rated Power (KVA) 6.3 4.2 6.3
Input Current Range (A) 12 - 29 20 - 38.5 12 - 29
Output Current Range (A) 15 - 50 15 - 35 15 - 50
Rated Output Voltage (V) 100 94 100
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 30-60psi 20-40psi 30-60psi
Air Flow Rate (CFM) 150L/min 150L/min
Clean Cutting Thickness (mm) 14mm 10mm 14mm
Cutting Thickness Severance (mm) 16mm@65psi 12mm@65psi 16mm@65psi
Cutting Speed 10mm 200mm/min@65psi 150mm/min@65psi 200mm/min@65psi
Machine Dimensions (mm) 410*156*264mm 410*156*264mm
Shipping Weight (kgs) 5.7kgs 5.7kgs
