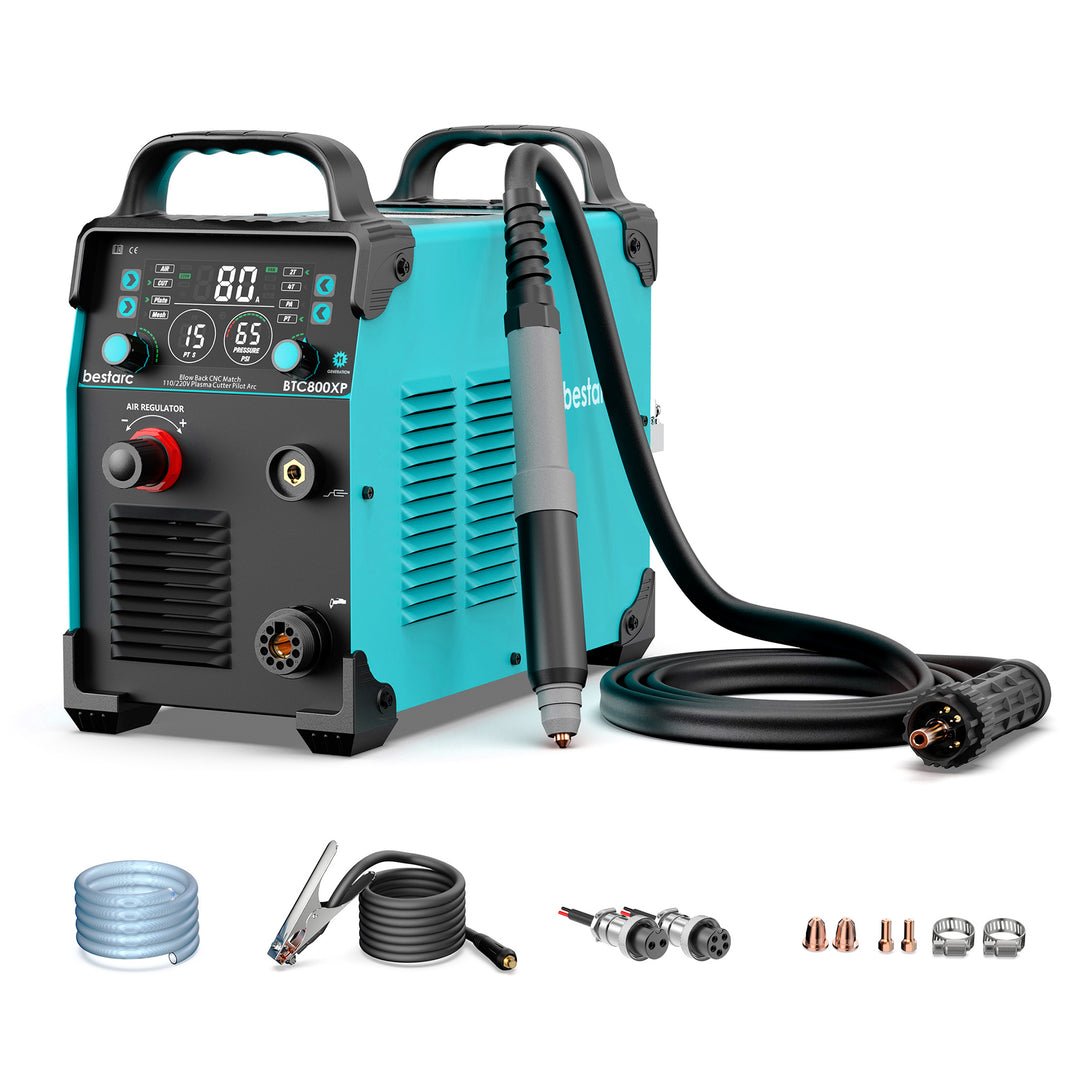

CNC Plasma Cutter, 80A BTC800XP Blow Back Pilot Arc, IGBT Inverter 110/220V Dual Voltage Straight Torch

$899.99 USD $599.99 USD ÉCONOMISEZ 33 %

3 Year Warranty

Pre-sale, save 15% when you add to cart!

Voltage and Torch Size: 220V-IPTM80-6M

220V-IPTM80-6M
380V-IPTM80-6M
Comparer

Features:

  1. Blow Back CNC plasma cutter
  2. Easy to Set Up, PT/2T/4T/PA Function
  3. IGBT Inverter Technology
  4. Built-in air filter
  5. Circuit Breaker Requirements:60A for 110V, 50A for 220V
Principales caractéristiques et avantages
  • [CNC Function]: bestarc plasma cutter features a blow back technology, Non-HF pilot arc with CNC capability, which prevents high-frequency signal interference and enhances cutting stability, blow back pilot arc non-touch the metal start the arc, plasma cutter machine has two connection ports: 2-pin connector for arc voltage output (1:1 ratio) and 5-pin connector for signal control. This design makes it easy to work with CNC cutting tables.
  • [Cutting Thickness]: Non-HF pilot arc plasma cutter boasts an automatic detection feature for input voltages of both 110V and 220V, 60% duty cycle single phase. It is recommended for cutting thicknesses up to 14mm at 40A on 110V with 50PSI, 25mm at 80A on 220V with 60PSI. The circuit breaker specifications require a 60A unit for 110V operation and a 50A unit for 220V. This versatile plasma cutter is ideal for use on materials including stainless steel, alloy steel, mild steel, copper, aluminum, etc.
  • [Digital Screen Display]: The CNC plasma cutter's digital screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations promptly, improving operational efficiency. If blow back plasma cutter can not work, the screen has an error code system, making it easy to find out the problems.
  • [Air Pressure Sensor & Air Compressor]: Plasma cutting machine is furnished with an integrated air pressure sensor, enabling users to regulate air pressure through the built-in regulator. It also comes with a pre-installed air filter equipped with a 1/4 NPT quick-connect fitting, ensuring immediate usability straight from unpacking. The suggested operating pressure for the air compressor falls within the parameters of 90 PSI and delivers a flow rate of 250L/min.
  • [PT/2T/4T/PA Function]: Adjustable post flow (3-15s) cools the torch and extends consumable life. PA timing up to 15s for mesh cutting or longer consumable durability. 2T/4T mode enables flexible cutting control with reduced finger fatigue.
Package Included

1 x Plasma cutter
1 x Earth clamp with 10-25 plug
1 x Cutting torch
1 x Air hose
1 x Wire adaptor
2 x Aviation plug
2 x Hose clamp
3 x Electrode
3 x0.030” Nozzle
3 x0.043”Nozzle

Fréquemment achetés ensemble

Aperçu rapide Consommables pour découpeur plasma IPT60, kit de 23 buses de torche de découpe
Consommables pour découpeur plasma IPT60, kit de 23 buses de torche de découpe
$45.99 $46.99
Aperçu rapide Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
$159.00
Aperçu rapide Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
$249.00
Aperçu rapide Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
Torche de découpe plasma CNC, torche de découpe plasma à arc pilote non HF droite IPTM60 IPTM80 20 pi/32 pi
$199.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Poser une question
Description du produit
Paramètre
Expédition et retour
Avis client
Video Review

BTC800XP 12GEN Specifications

Description BTC800XP 12GEN
Power Supply / Phases (V-Ph) 110V ±10% 220V ±15% 380V ±15%
Duty Cycle @ 78°F (25°C) 60% @ 40Amps 60% @ 80Amps 60% @ 80Amps
Rated Power (KVA) 5.9KVA 13.6KVA 13.6KVA
Input Current Range (A) 23A - 54A 16A - 62A 9A - 36A
Output Current Range (A) 15 - 40 Amps 15 - 80 Amps 15 - 80 Amps
Rated Output Voltage (V) 100V 114V 114V
No-Load Voltage (Open Circiut)(V) 281V 281V 281V
Efficiency (%) 60 60 60
Insulation Class F F F
Protection Class IP21S IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 20 - 45 psi 30 - 70 psi 30 - 70 psi
Clean Cutting Thickness (mm) 12mm 16mm 16mm
Cutting Thickness Severance (mm) 16mm@45psi 40mm@70psi 40mm@70psi
Machine Dimensions (mm) 494 × 199 × 346mm 494 × 199 × 346mm 494 × 199 × 346mm
Ship NET Weight (kgs) 10.5KG 10.5KG 10.5KG
Air Flow Rate (CFM) 150L/min 150L/min 150L/min

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description du produit

Paramètre

BTC800XP 12GEN Specifications

Description BTC800XP 12GEN
Power Supply / Phases (V-Ph) 110V ±10% 220V ±15% 380V ±15%
Duty Cycle @ 78°F (25°C) 60% @ 40Amps 60% @ 80Amps 60% @ 80Amps
Rated Power (KVA) 5.9KVA 13.6KVA 13.6KVA
Input Current Range (A) 23A - 54A 16A - 62A 9A - 36A
Output Current Range (A) 15 - 40 Amps 15 - 80 Amps 15 - 80 Amps
Rated Output Voltage (V) 100V 114V 114V
No-Load Voltage (Open Circiut)(V) 281V 281V 281V
Efficiency (%) 60 60 60
Insulation Class F F F
Protection Class IP21S IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 20 - 45 psi 30 - 70 psi 30 - 70 psi
Clean Cutting Thickness (mm) 12mm 16mm 16mm
Cutting Thickness Severance (mm) 16mm@45psi 40mm@70psi 40mm@70psi
Machine Dimensions (mm) 494 × 199 × 346mm 494 × 199 × 346mm 494 × 199 × 346mm
Ship NET Weight (kgs) 10.5KG 10.5KG 10.5KG
Air Flow Rate (CFM) 150L/min 150L/min 150L/min
