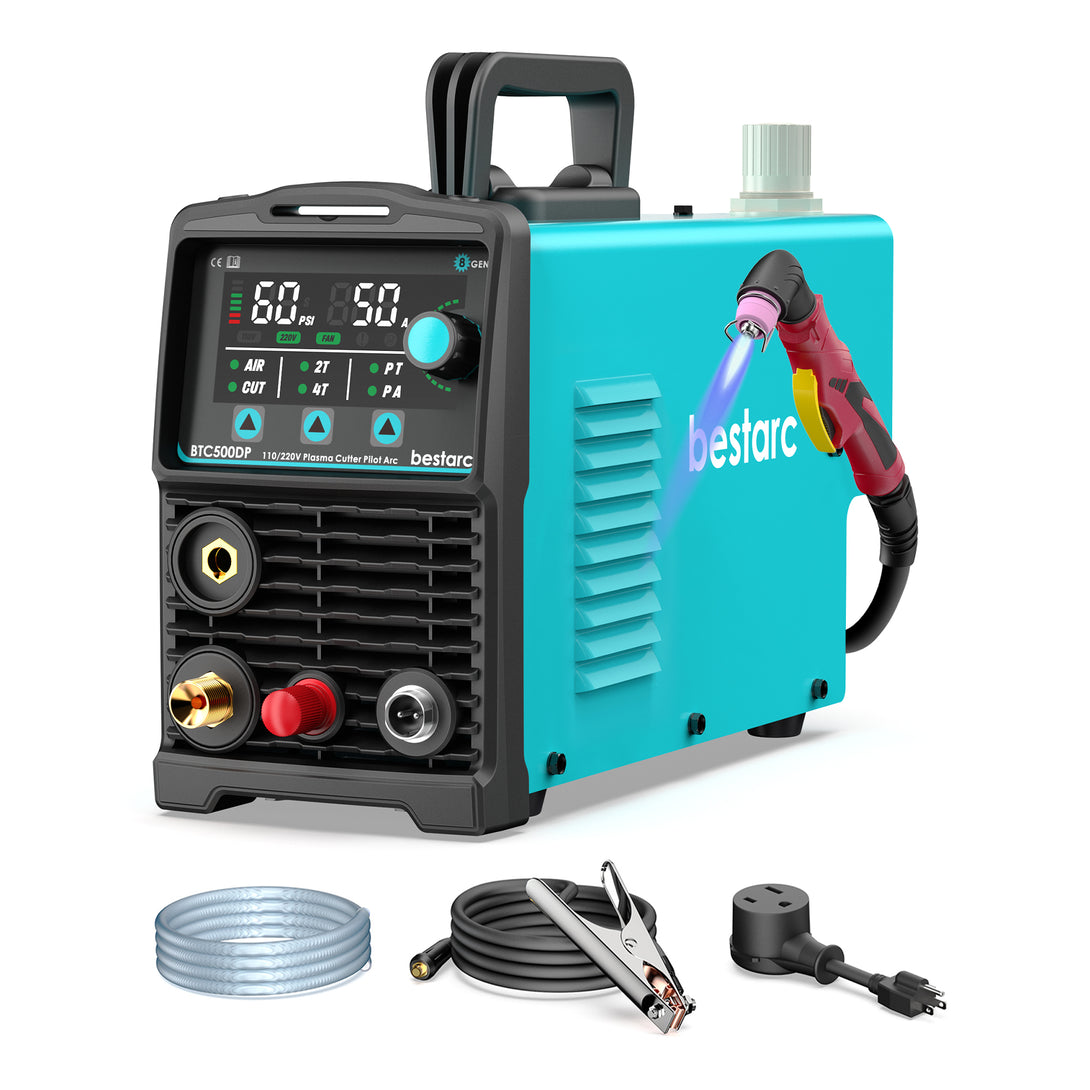

BTC500DP 50A Pilot Arc Plasma Cutter, 110/220V Dual Voltage, 1/2'' Clean Cut, 2/3'' Max Cut

$269.99 USD $229.99 USD ÉCONOMISEZ 15 %

3 Year Warranty

Comparer

Features:

  1. Portable and Super Lightweight
  2. Easy to Set Up, Even for Beginners
  3. Large LED display
  4. Max Rated Clean Cut Thickness: 1/2"
  5. Max Severance Thickness: 2/3"
Principales caractéristiques et avantages
  • [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2" clean cuts on Iron, Steel aluminum and copper with Inverter IGBT Technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 1/2" @35A 110V 50PSI; 2/3" @50A 220V 65PSI. Dry and compressed air is required. Power breaker up to 60A@110V 35A; Up to 50A@220V 50A.
  • [Pilot Arc]: Bestarc plasma cutter with the pilot arc function. It is a high-frequency non-touch arc starting mode. The torch head does not need to touch the metal plate, making it effective on rusted, painted, or dirty metal surfaces. Adjustable PA function for extended pilot arc duration, reduced energy consumption in non-cutting work, reduced electrode burning, and extended consumables cutting life. cortadora de plasma para metal

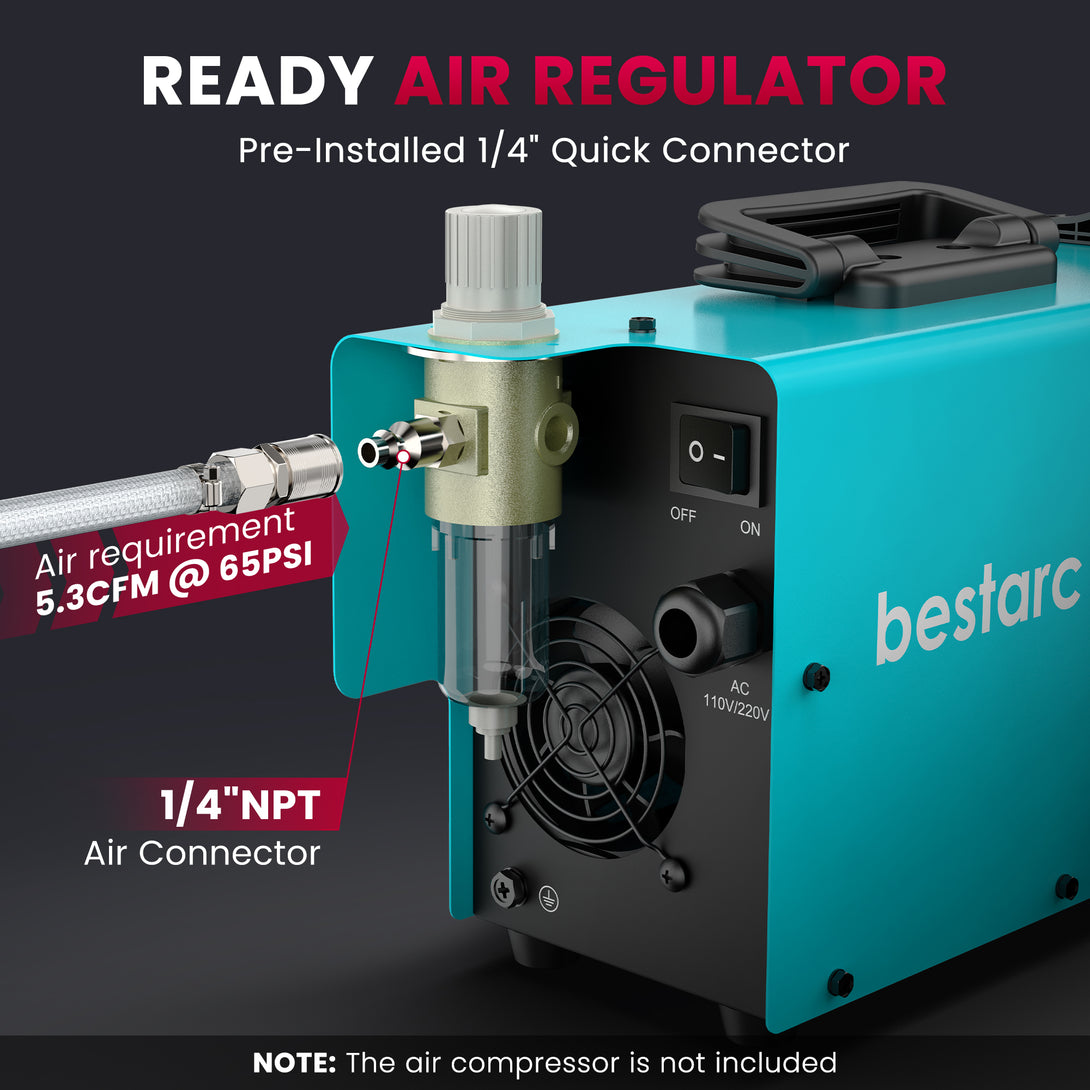

  • [Air Sensor Technology]: The air sensor built in machine displays air pressure on front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). Air filter is installed in the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 65 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.
  • [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.
  • [2T/4T/PA/PT Function]: Post time adjustable from 3-15s to cool the torch. Adjust the cooling time of the torch head to extend the service life of consumables. We recommend a cooling time of 4-8 seconds. The PA function allows pilot arc timing adjustment up to 15s; longer times are ideal for mesh cutting, shorter times help extend consumable life. 2T/4T automatic cutting release your finger.2T is a semi-automatic cutting control, and 4T is an automatic cutting control.
  • [Multi-Purpose Use]: Designed for home garages, farm repairs, workshops, and metal fabrication projects, this plasma cutter is easy to set up and simple to operate. It delivers smooth, stable cutting performance on steel, stainless steel, aluminum, and other common metals, making it a practical choice for DIY users, beginners, and everyday cutting tasks.
Package Included

1 xPlasma cutter
1 x Cutting torch
1 x Earth clamp with cable
2 x Tip (Nozzle)
2 x Hose clamp
2 x Electrode
1 x Air hose
1 x Wire adaptor

Fréquemment achetés ensemble

Aperçu rapide bestarc plasma cutter torch consumables kit with storage box, nozzle, electrode and shield cup set
Kit de buses de torche de découpe plasma Bestarc AG60P avec boîte de 50 pièces
$30.99 $49.99
Aperçu rapide Kit de 50 buses pour torche de découpe plasma Bestarc AG60P
Kit de 50 buses pour torche de découpe plasma Bestarc AG60P
$25.99 $39.99
Aperçu rapide Kit de 40 buses pour torche de découpe plasma Bestarc AG60P
Kit de 40 buses pour torche de découpe plasma Bestarc AG60P
$21.99 $34.99
Aperçu rapide Torche de découpe plasma, torche de découpe plasma à air haute fréquence 40 A, 50 A, 60 A, PT31, AG60 SG55, AG60P, WSD60 (AG60P)
Torche de découpe plasma, torche de découpe plasma à air haute fréquence 40 A, 50 A, 60 A, PT31, AG60 SG55, AG60P, WSD60 (AG60P)
$49.99
Aperçu rapide Support magnétique pour chalumeau de soudage TIG Bestarc, accessoire de soudage MIG/TIG avec base magnétique puissante, petit modèle
Support magnétique pour chalumeau de soudage TIG Bestarc, accessoire de soudage MIG/TIG avec base magnétique puissante, petit modèle
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Poser une question
Description du produit
Paramètre
Expédition et retour
Avis client
Video Review

BTC500DP 8GEN Specifications

Description BTC500DP 8GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 50% @ 50Amps 50% @ 40Amps
Rated Power (KVA) 5.75 4.5
Input Current Range (A) 15 - 35 15 - 40
Output Current Range (A) 20 - 50 20 - 35
Rated Output Voltage (V) 88 - 96 88 - 94
No-Load Voltage (Open Circuit)(V) 296 296
Efficiency (%) 75 75
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 25 - 70 psi 30 - 50psi
Air Flow Rate (CFM) 150 L/min 150 L/min
Clean Cutting Thickness (mm) 12mm 8mm
Cutting Thickness Severance (mm) 16mm@65psi 50Amps 12mm@45psi 35Amps
Machine Dimensions (mm) 355 × 132 × 215mm 355 × 132 × 215mm

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Laura Fisher
Fast shipping

The order came quickly

Description du produit

Paramètre

BTC500DP 8GEN Specifications

Description BTC500DP 8GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 50% @ 50Amps 50% @ 40Amps
Rated Power (KVA) 5.75 4.5
Input Current Range (A) 15 - 35 15 - 40
Output Current Range (A) 20 - 50 20 - 35
Rated Output Voltage (V) 88 - 96 88 - 94
No-Load Voltage (Open Circuit)(V) 296 296
Efficiency (%) 75 75
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 25 - 70 psi 30 - 50psi
Air Flow Rate (CFM) 150 L/min 150 L/min
Clean Cutting Thickness (mm) 12mm 8mm
Cutting Thickness Severance (mm) 16mm@65psi 50Amps 12mm@45psi 35Amps
Machine Dimensions (mm) 355 × 132 × 215mm 355 × 132 × 215mm
