TIG215P ACDC

TIG Welder, 215A Pluse TIG AC DC Aluminum Welder, IGBT Inverter 110/220V Dual Voltage
$799.99Save $200.00

Key features

Features:
✅AC/DC TIG & Stick welding
✅High-frequency arc start & stable arc
✅Pulse function for cleaner, stronger welds
✅Perfect for aluminum work, fabrication, and repairs
✅ Support Welding Aluminum

Complete your setup

American Express Apple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa
Shipping & Returns

View delivery information and return conditions before ordering.

Shipping policy Return policy
3 Years Warranty

View coverage details for your BESTARC machine.

Warranty information
Support

Get help choosing, setting up or using your BESTARC machine.

Contact us
  • 7-IN-1 AC/DC TIG WELDER: This TIG welder offers versatile welding capabilities, including DC TIG, DC Pulse TIG, AC TIG, AC Pulse TIG, Square Wave AC Pulse TIG, and Stick (MMA) welding. TIG welder supports a 5-pin TIG foot pedal for full remote control of the TIG welding process. This AC/DC aluminum TIG welder delivers up to 215 amps and operates on dual voltage 110V/220V, making it suitable for a wide range of welding tasks, including aluminum, stainless steel, mild steel, and more.

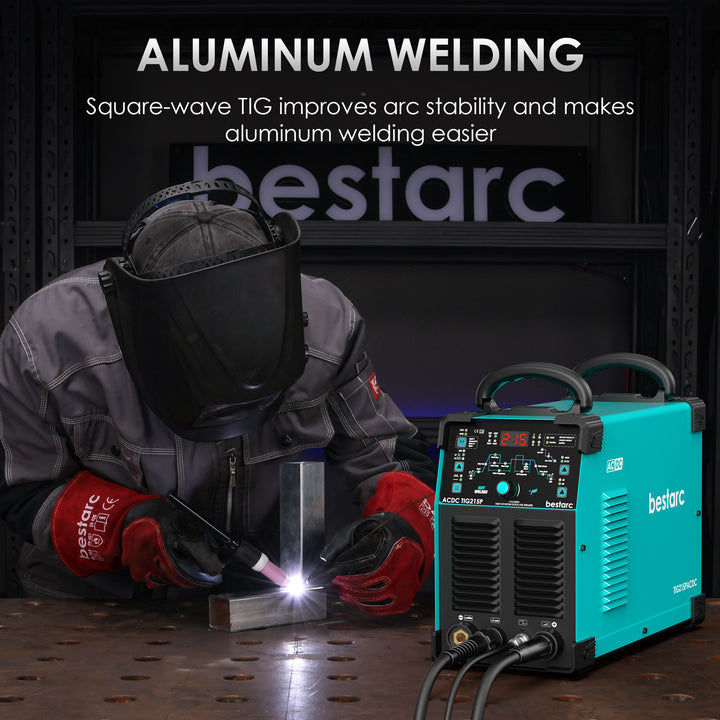

  • Pulse & Square Waveform: The AC TIG mode ensures excellent heat input control and oxide cleaning, making it ideal for aluminum and magnesium welding. DC TIG provides deep penetration and high efficiency for welding steel, stainless steel, and copper. Pulse TIG mode enhances control on thin metals by minimizing heat input and distortion. Square wave AC TIG improves arc stability and cleaning action, resulting in cleaner, stronger welds — especially when aluminum welding.
  • Post Gas, Down-Slope & 2T/4T: TIG welding machine features adjustable post gas time from 1 to 15s, continuous blowing gas after the welding torch is turned off to protect the weld and extend torch life. Down-slope gradually reduces current at the end of tig welding, preventing tig weld crater formation, improving weld appearance, and reducing the risk of hot cracking. 2T mode for short welds and 4T mode for continuous welding to reduce operator fatigue and improve efficiency.

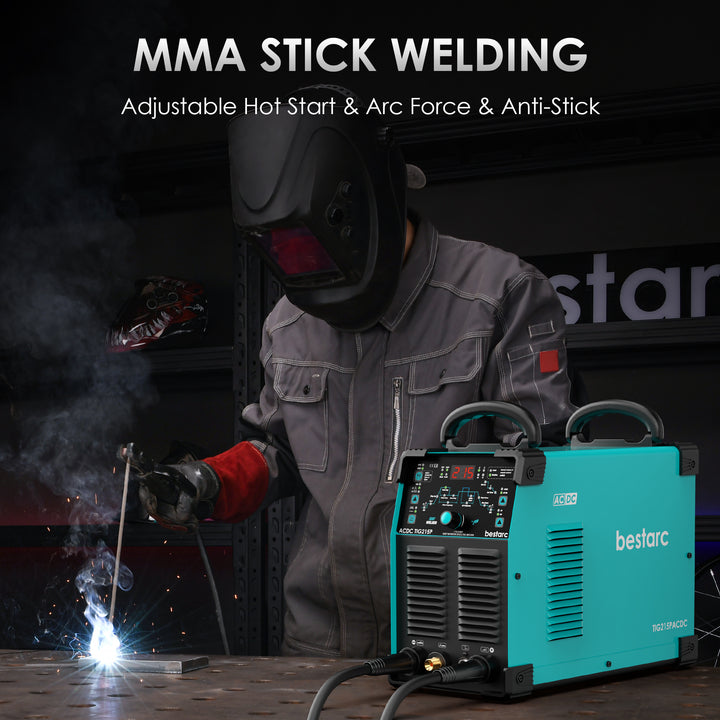

  • MCU Precision Control: This TIG welder is equipped with an MCU processor to ensure precise control, fast arc ignition response, and stable arc performance. Enhanced stick welding, providing smooth arc start, stable current, minimal spatter, no electrode sticking and excellent weld formation. Optimize welding parameters in real time, enabling precise low-temperature control and improving efficiency across various materials and applications
  • Remote Control: TIG welder with foot pedal supports connection to a 5-pin TIG foot pedal, allowing TIG welders to control the welding current remotely, freeing both hands to focus on welding operations. If the foot pedal is plugged in, the device will automatically switch to foot pedal mode. The package already includes a foot switch. The AC TIG welder also features a memory function, allowing you to save up to nine sets of welding parameters for quick access and improved efficiency

Explore TIG215P ACDC

Product specifications

TIG215P AC/DC TIG STICK TIG STICK
Power Supply / Phases 110V ±10% 220V ±10%
Frequency 50/60 Hz 50/60 Hz
Duty Cycle @ 78°F (25°C) 60% 60%
Rated Power (KVA) 6KVA
Output Current Range (A) DC: 10-160A
AC: 10-160A 		20-140A DC: 10-215A
AC: 10-215A 		20-180A
Rated Output Voltage (V) 10-16.4V 20-25.6V 10-18.6V 20-27.2V
Input Current (A) DC: 32A
AC 40Hz: 38A
AC 200Hz: 42A 		AC: 42A DC: 35A
AC 40Hz: 43A
AC 200Hz: 44A 		AC: 42A
Post flow Time 0-15 S 0-15 S
Pre-Gas Time 0-1 S 0-1 S
Slope Up Time 0-15 S 0-15 S
Slope Down Time 0-25 S 0-25 S
Burn Back Current 10-160 A 10-215 A
Pulse Duty (%) 10-90 % 10-90 %
Pulse Frequency (Hz) 0.5-200 Hz 0.5-200 Hz
Peak Pulse Current (A) 10-160 A 10-215 A
Base Pulse Current (A) 5-95% of Peak Pulse Current 5-95% of Peak Pulse Current
AC Frequency AC 40-200 Hz AC 40-200 Hz
AC Clean Width AC 30-50% AC 30-50%
ARC Force 0-100 A 0-100 A
Hot Arc Starting 0-100 A 0-100 A
VRD YES YES
Remote Control YES YES
Memory 9 Channels
Save: Hold press 3 Second
poen: Hold press 3 Second 		9 Channels
Save: Hold press 3 Second
poen: Hold press 3 Second
Power Factor 0.85cosΦ 0.85cosΦ
Efficiency (%) 80% 80%
Insulation Class F F
Protection Class IP21S IP21S
No-Load loss (W) 47W 47W
Arc Starting HF Arc Starting
Initial Current 10-215 A

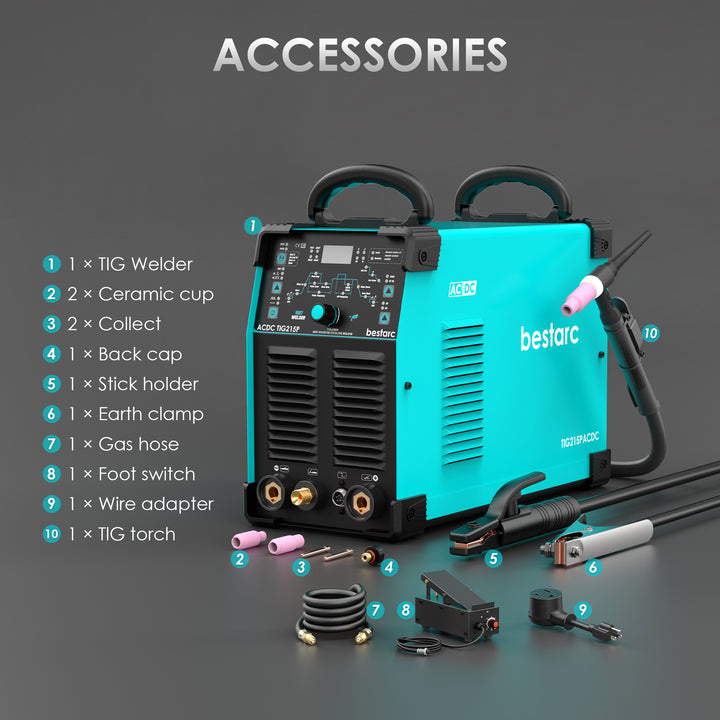

What's in the box

1x TlG welder

1x Stick holder

1x Earth clamp

1x Gas hose

1x TlG26 torch

2xCeramic cup

2x Collect

1x Back cap

1x Wire adapter

1x Foot pedal

1x Foot pedal control line

1x Torch switch control line

Key Features & Benefits
  • 7-IN-1 AC/DC TIG WELDER: This TIG welder offers versatile welding capabilities, including DC TIG, DC Pulse TIG, AC TIG, AC Pulse TIG, Square Wave AC Pulse TIG, and Stick (MMA) welding. TIG welder supports a 5-pin TIG foot pedal for full remote control of the TIG welding process. This AC/DC aluminum TIG welder delivers up to 215 amps and operates on dual voltage 110V/220V, making it suitable for a wide range of welding tasks, including aluminum, stainless steel, mild steel, and more.
  • Pulse & Square Waveform: The AC TIG mode ensures excellent heat input control and oxide cleaning, making it ideal for aluminum and magnesium welding. DC TIG provides deep penetration and high efficiency for welding steel, stainless steel, and copper. Pulse TIG mode enhances control on thin metals by minimizing heat input and distortion. Square wave AC TIG improves arc stability and cleaning action, resulting in cleaner, stronger welds — especially when aluminum welding.
  • Post Gas, Down-Slope & 2T/4T: TIG welding machine features adjustable post gas time from 1 to 15s, continuous blowing gas after the welding torch is turned off to protect the weld and extend torch life. Down-slope gradually reduces current at the end of tig welding, preventing tig weld crater formation, improving weld appearance, and reducing the risk of hot cracking. 2T mode for short welds and 4T mode for continuous welding to reduce operator fatigue and improve efficiency.
  • MCU Precision Control: This TIG welder is equipped with an MCU processor to ensure precise control, fast arc ignition response, and stable arc performance. Enhanced stick welding, providing smooth arc start, stable current, minimal spatter, no electrode sticking and excellent weld formation. Optimize welding parameters in real time, enabling precise low-temperature control and improving efficiency across various materials and applications
  • Remote Control: TIG welder with foot pedal supports connection to a 5-pin TIG foot pedal, allowing TIG welders to control the welding current remotely, freeing both hands to focus on welding operations. If the foot pedal is plugged in, the device will automatically switch to foot pedal mode. The package already includes a foot switch. The AC TIG welder also features a memory function, allowing you to save up to nine sets of welding parameters for quick access and improved efficiency
