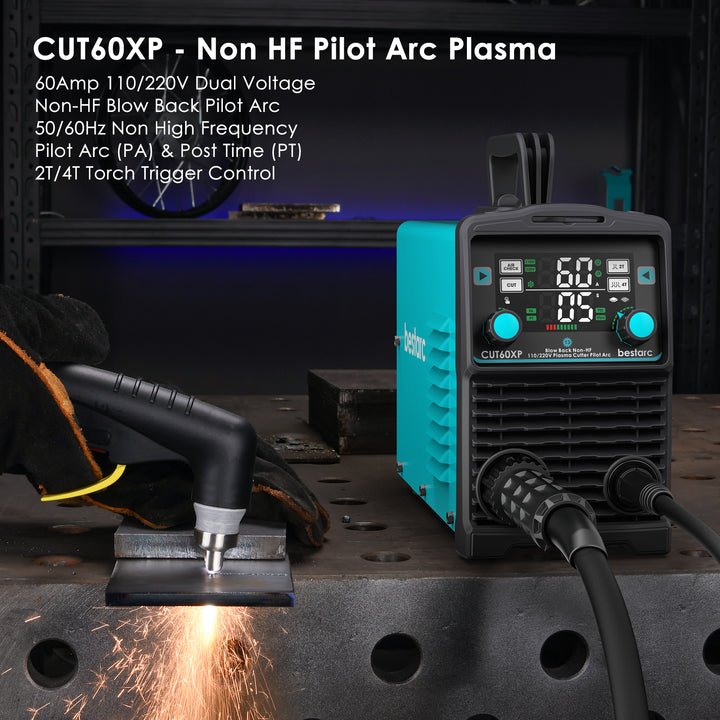

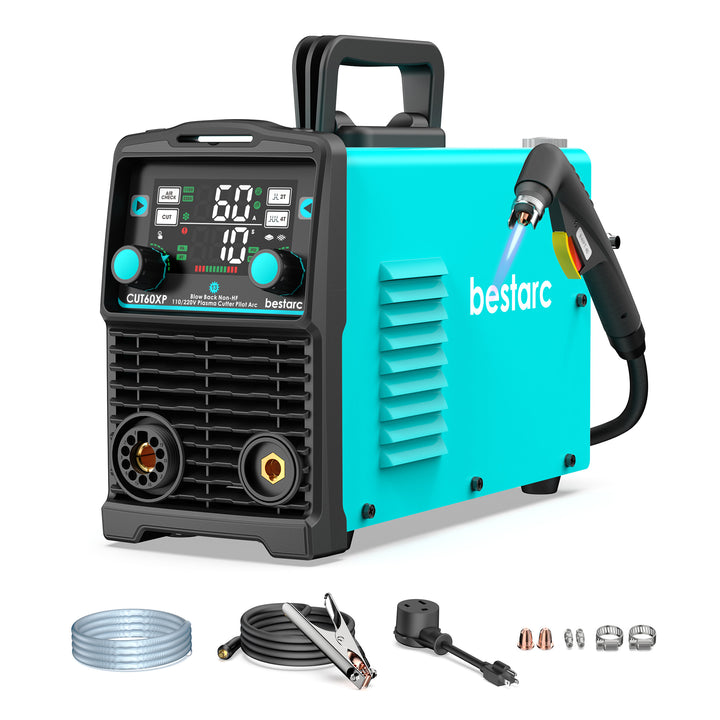

CUT60XP 60A Non-HF Pilot Arc Plasma Cutter 110/220V Dual Voltage

$399.99 USD $279.99 USD SAVE 30%

3 Year Warranty

Compare

Features:
1. 110V/220V Dual Voltage
2. Powerful Cutting Performance
3. Blow-Back Pilot Arc
4. Air Sensor Technology
5. LED Digital Display
6. PA/PT Function
7. 2T/4T Cutting Modes

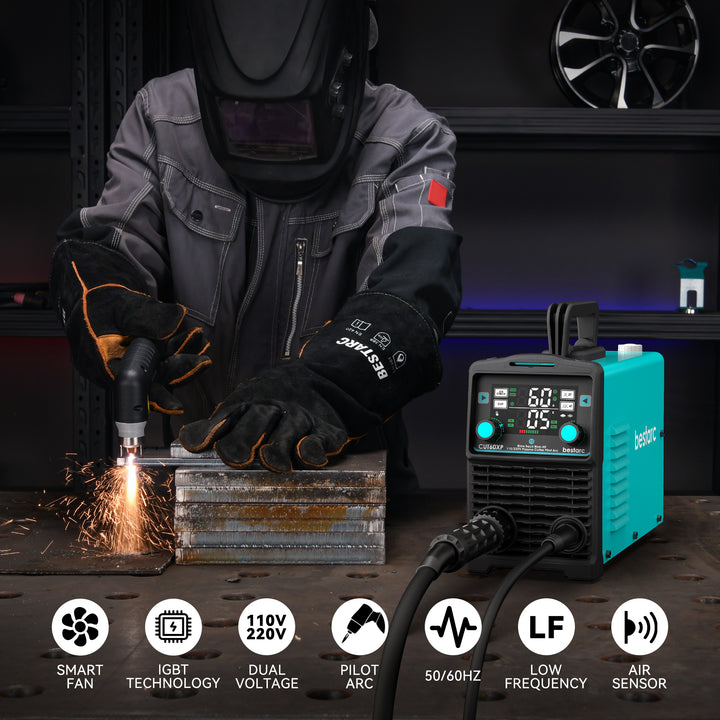

8. Inverter IGBT Technology
9. Built-in Air Filter & 1/4" NPT Connector

Key Features & Benefits

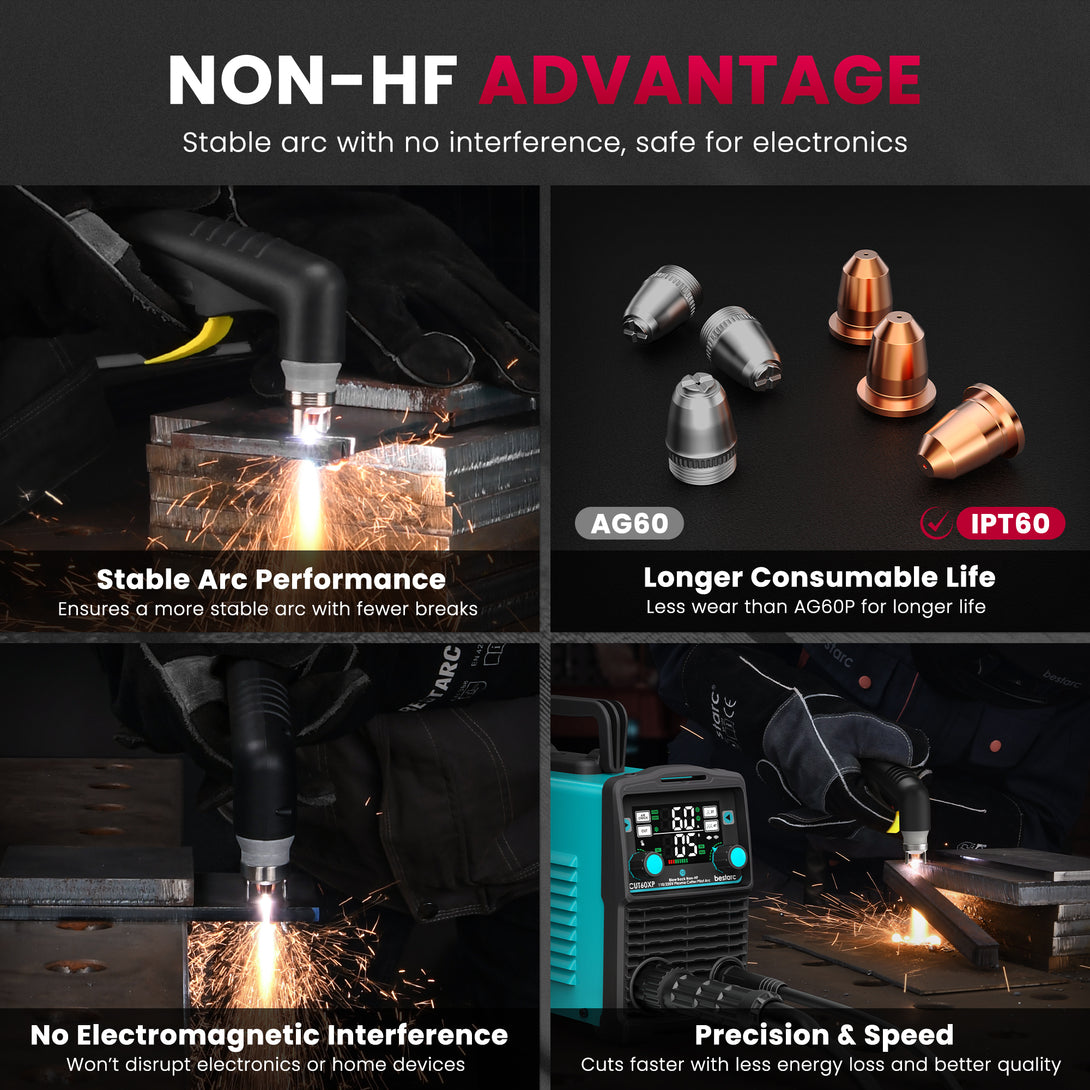

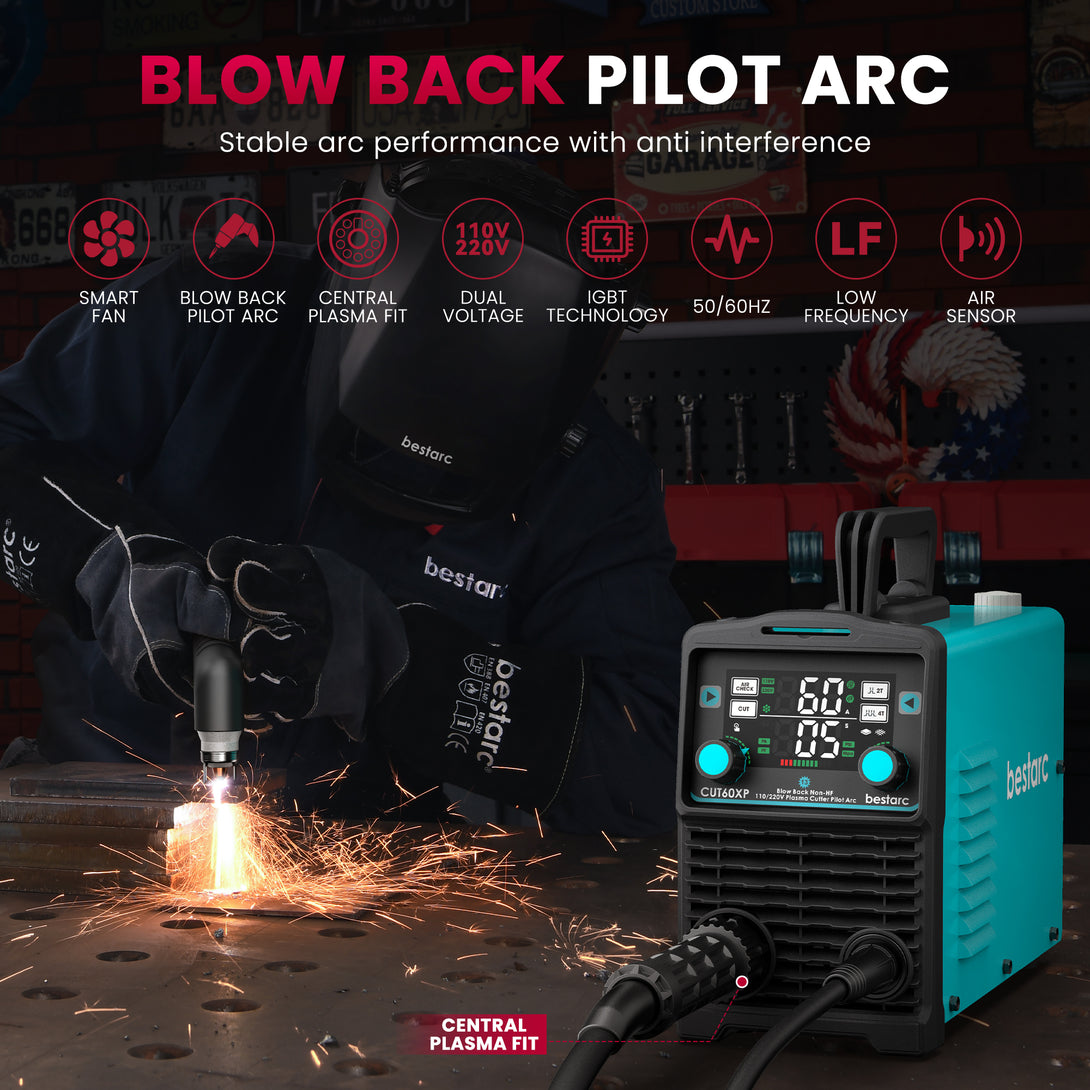

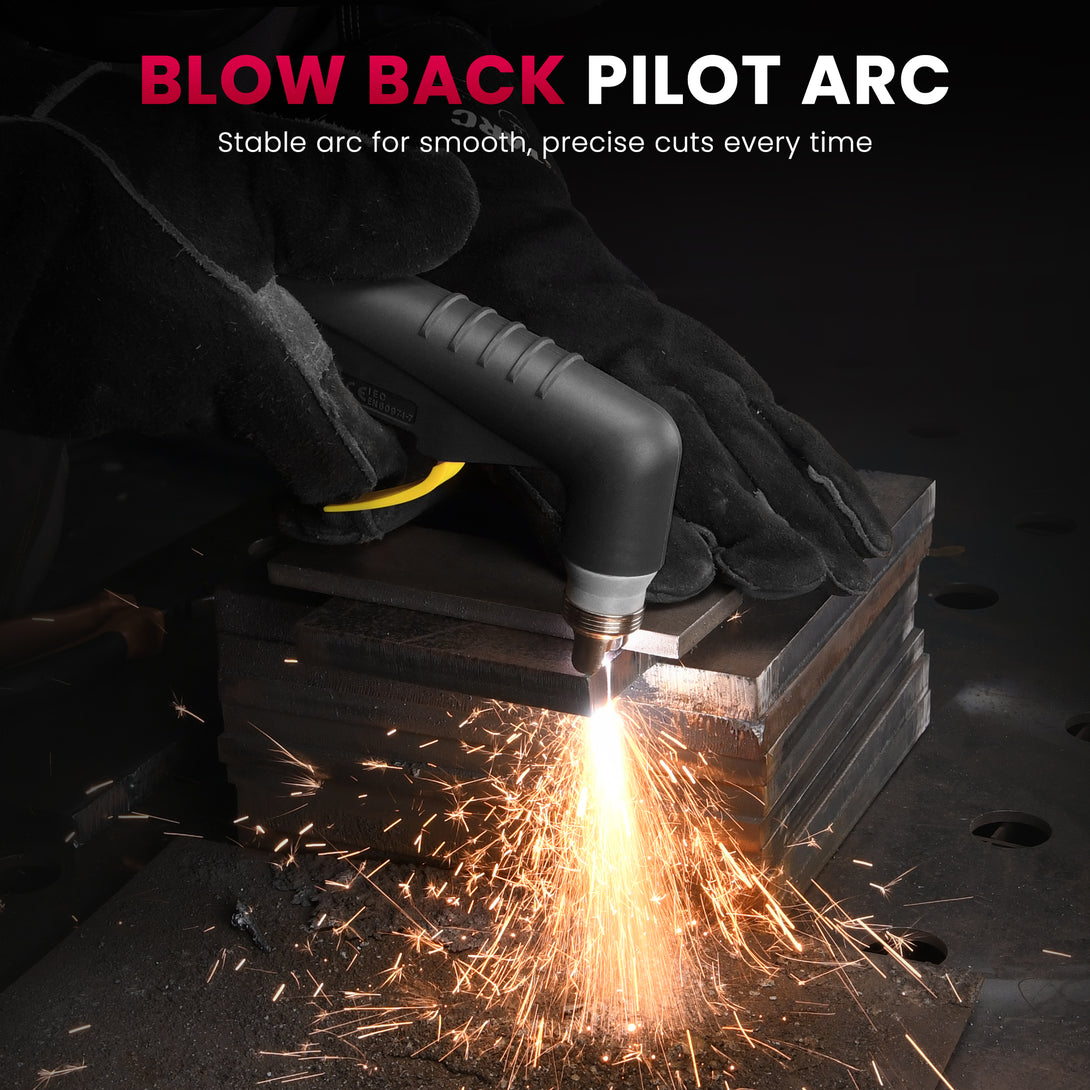

  • [Blow Back Pilot Arc]: bestarc plasma cutter features a blow back technology, Non-high-frequency pilot arc prevents hf signal interference and improves cutting stability. Blow-back pilot arc technology initiates the arc without touching the metal, while low-frequency arc maintenance reduces electrode burn during non-cutting, extending electrode and nozzle life

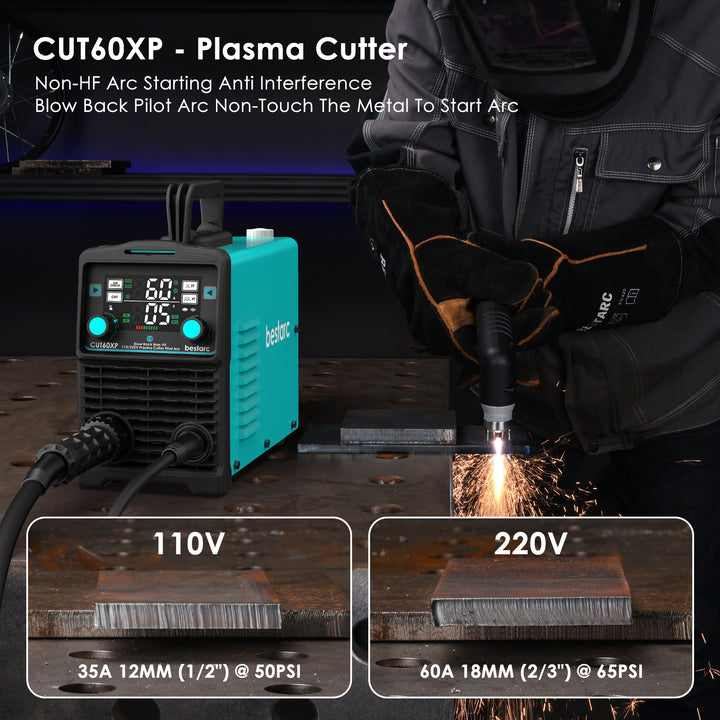

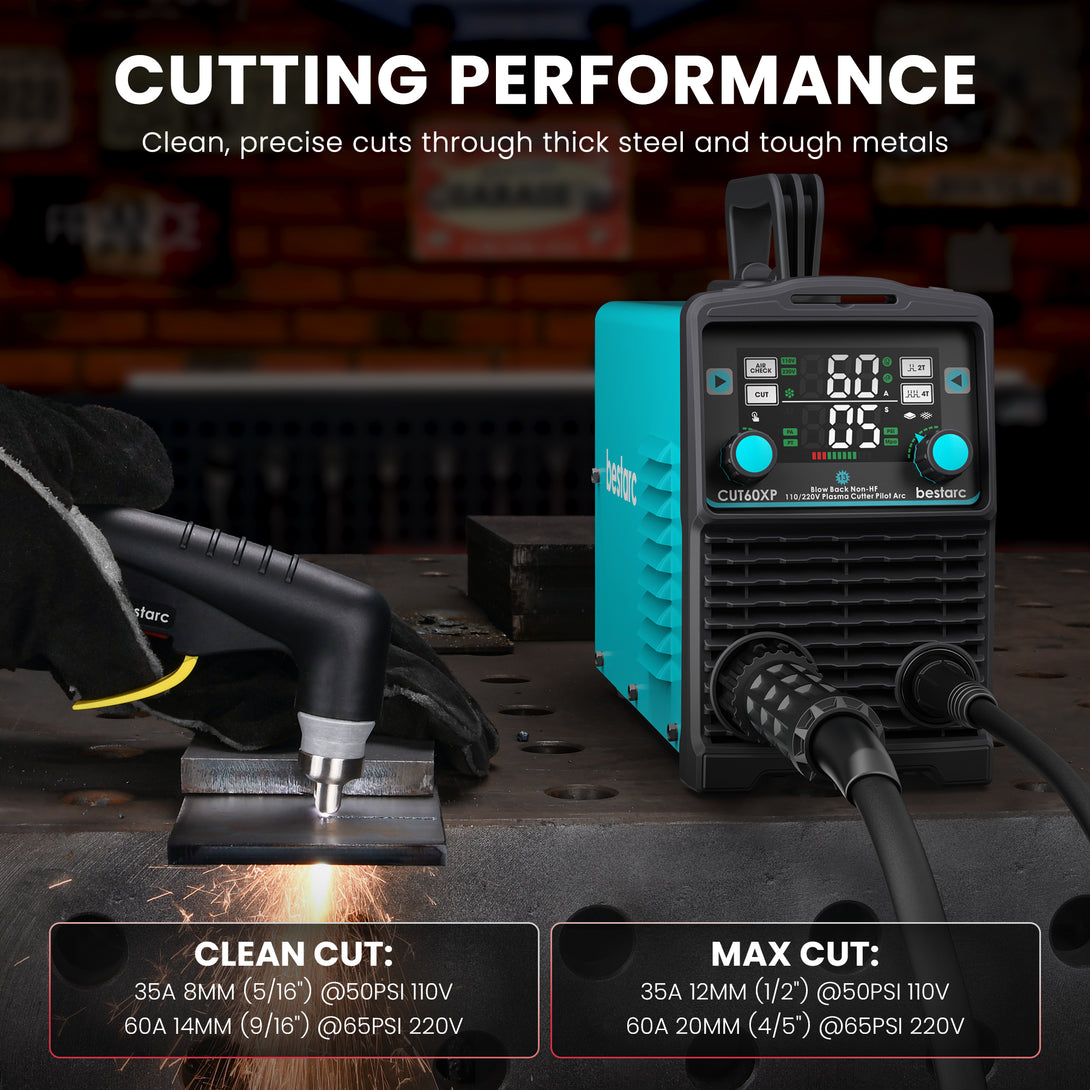

  • [Cutting Thickness]: Non-HF blow back pilot arc plasma cutter boasts an automatic detection feature for input voltages of both 110V and 220V, 60% duty cycle single phase. It is recommended for cutting thicknesses up to 12mm at 35A on 110V with 50PSI, 16mm at 60A on 220V with 70PSI. The circuit breaker specifications require a 40A unit for 110V operation and a 30A unit for 220V. This versatile plasma cutter is ideal for use on materials including stainless steel, alloy steel, mild steel, copper, aluminum, Good for Home DIY.
  • [Digital Screen Display]: The plasma cutter's digital screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations promptly, improving operational efficiency. If blow back plasma cutter can not work, the screen has an error code system, making it easy to find out the problems

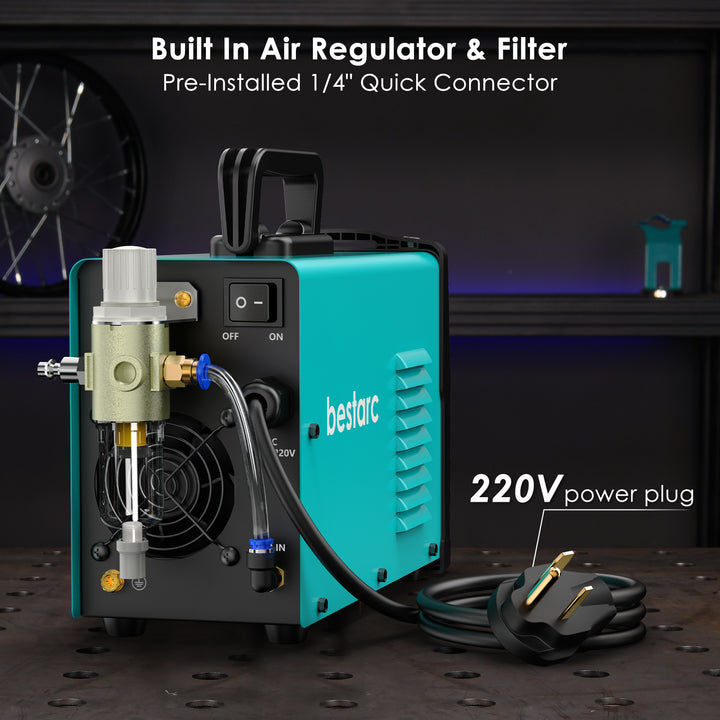

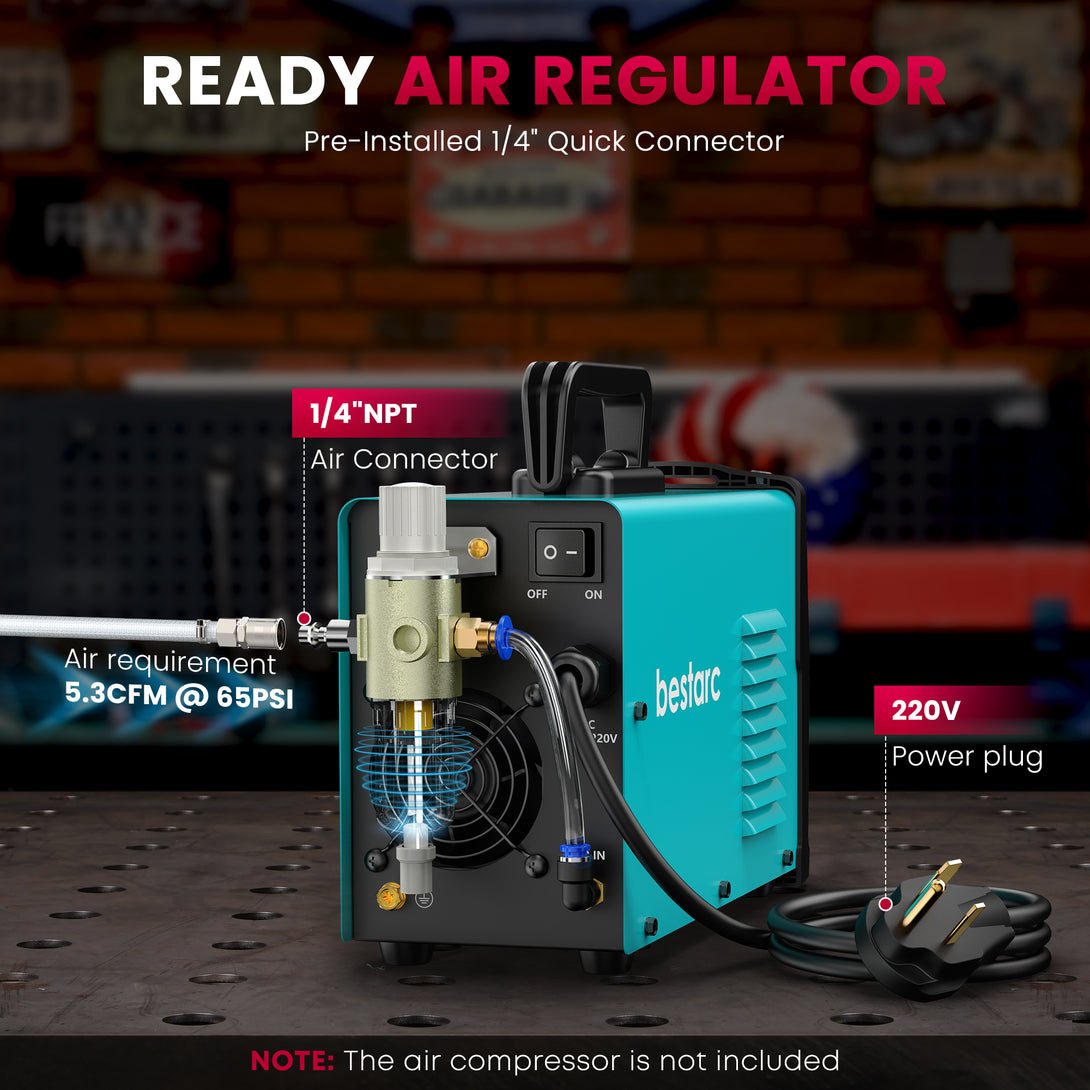

  • [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute
  • [PT/2T/4T/PA Function]: Adjustable post flow (3-15s) cools the torch and extends consumable life. PA timing up to 15s for mesh cutting or longer consumable durability. 2T/4T mode enables flexible cutting control with reduced finger fatigue.

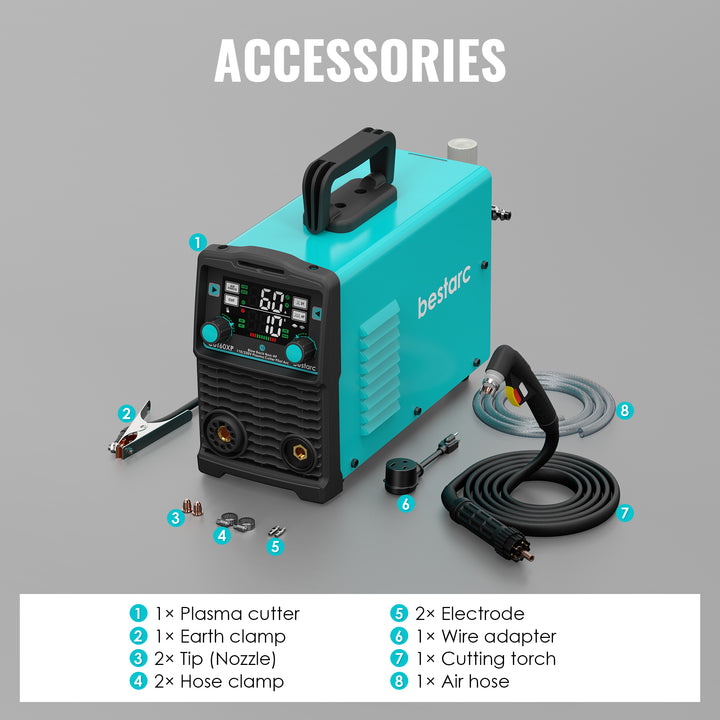

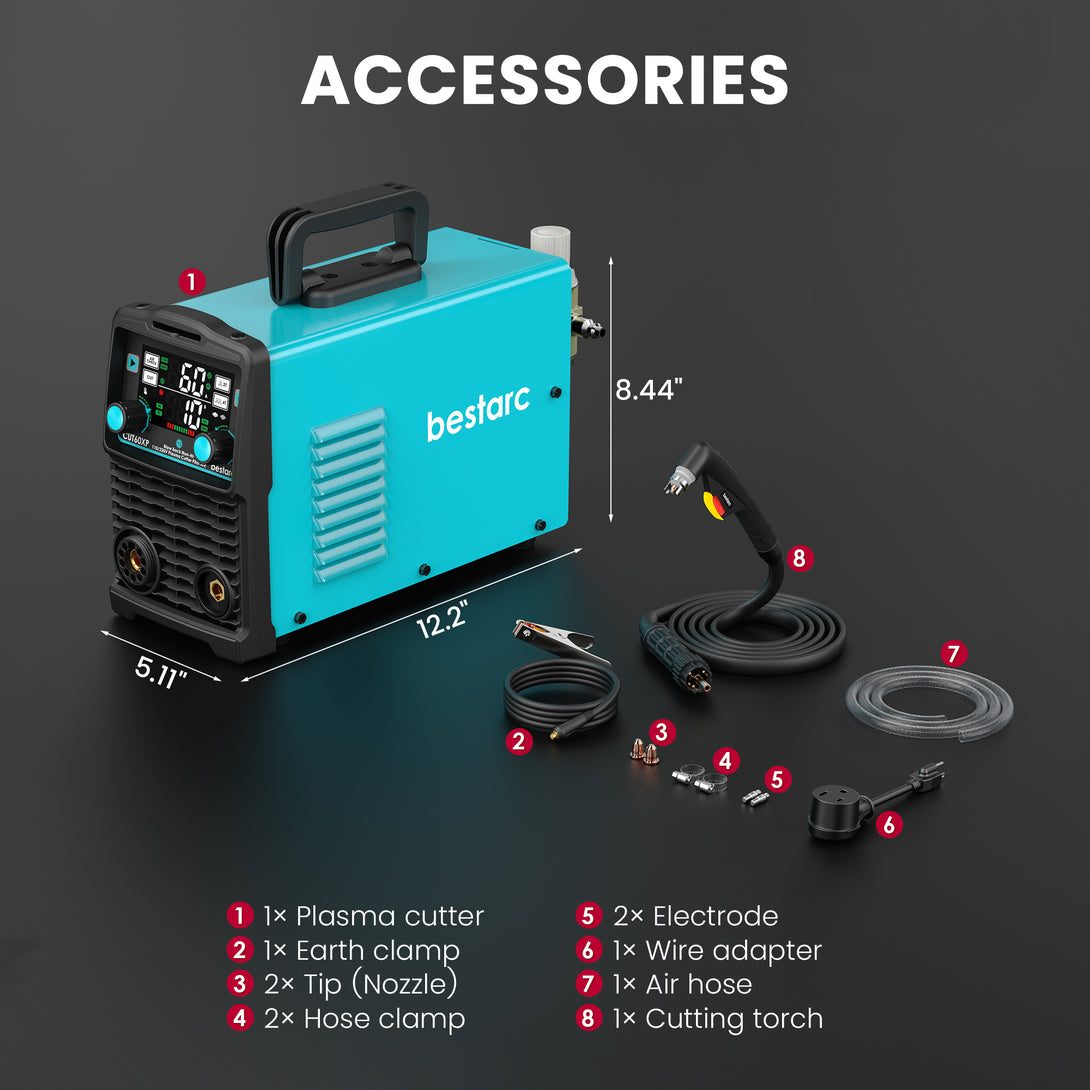

Package Included

1 xPlasma cutter
1 x Cutting torch
1 x Earth clamp with cable
2 x Tip (Nozzle)
2 x Hose clamp
2 x Electrode
1 x Air hose
1 x Wire adaptor

Frequently Bought Together

Quick view IPT60 Plasma Cutting Torch Tip Nozzles Kit
IPT60 Plasma Cutting Torch Tip Nozzles Kit
$45.99 $46.99
Quick view CNC Plasma Cutting Torch IPTM60 20FT
CNC Plasma Cutting Torch IPTM60 20FT
$159.00
Quick view bestarc Magnetic MIG TIG Welding Torch Holder
bestarc Magnetic MIG TIG Welding Torch Holder
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Ask a Question
Product description
Parameter
Warranty
Customer Review
Video Review



CUT60XP 13GEN Specifications

Model CUT60XP 13GEN
220V 110V
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 60% 60%
Rated Power (KVA) 7.5 3.9
Input Current Range (A) 18 - 34.5 25 - 35.5
Output Current Range (A) 15 - 60 15 - 40
Rated Output Voltage (V) 102 96
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 30 - 70 psi 20 - 50 psi
Air Flow Rate (CFM) 150 L/min 150 L/min
Clean Cutting Thickness (mm) 14mm 10mm
Cutting Thickness Severance (mm) 16mm@70psi 12mm@50psi
Machine Dimensions (mm) 377 × 140 × 225mm 377 × 140 × 225mm
