65A Non-HF CNC Plasma Cutter BTC650XP 11GEN 110/220V Dual Voltage

$659.99 USD $459.99 USD SAVE 30%

3 Year Warranty

Pre-sale, save 15% when you add to cart!

Plug specification: US( 110/220V )

US( 110/220V )
No-Plug
Compare

Features:

  1. High Cost-performance CNC Plasma Cutter
  2. Easy to Set Up, PT/2T/4T/PA Function
  3. IGBT Inverter Technology

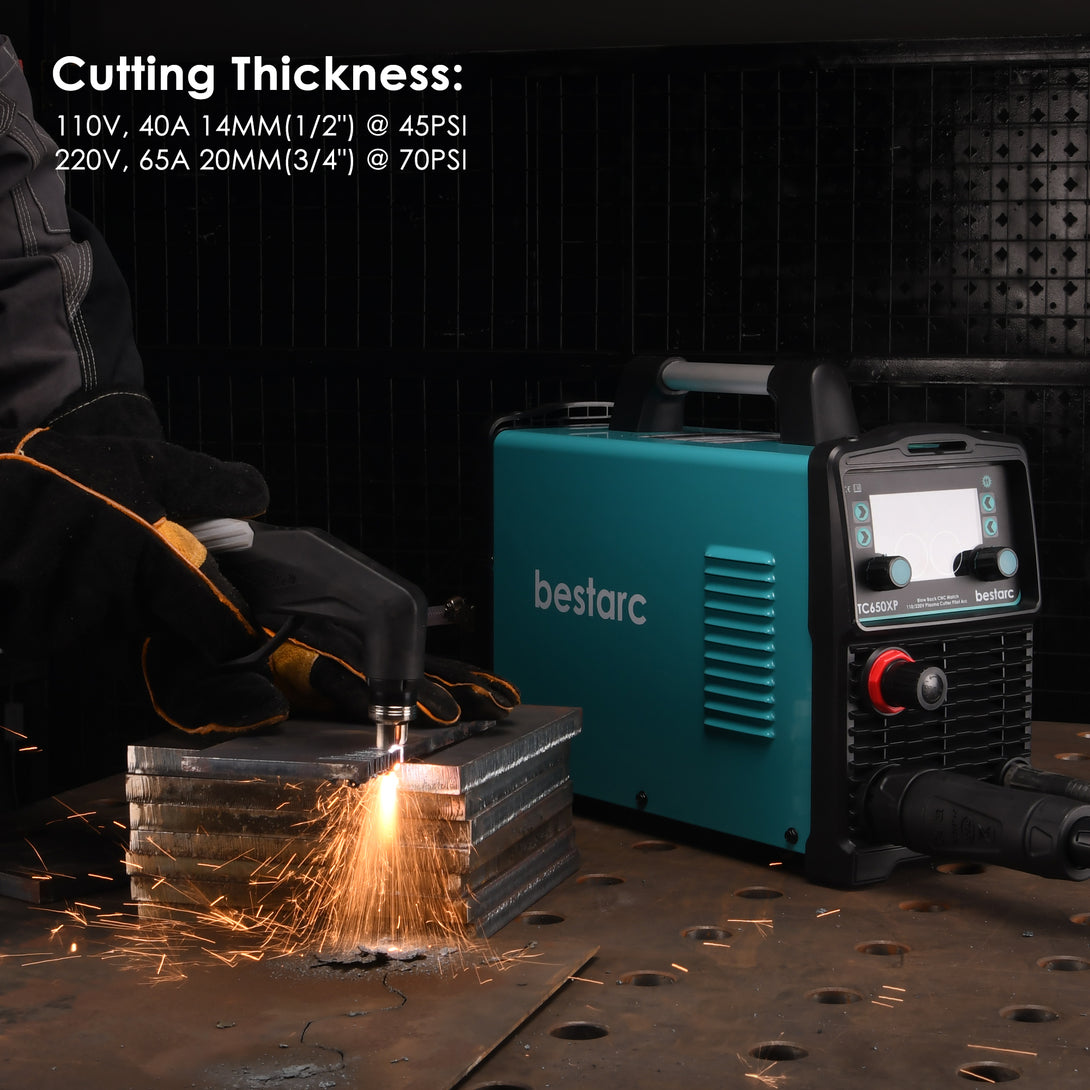

  4. The maximum cutting thickness: 20mm 220V@65A,70PSI
  5. Circuit Breaker Requirements:60A for 110V, 40A for 220V
Key Features & Benefits

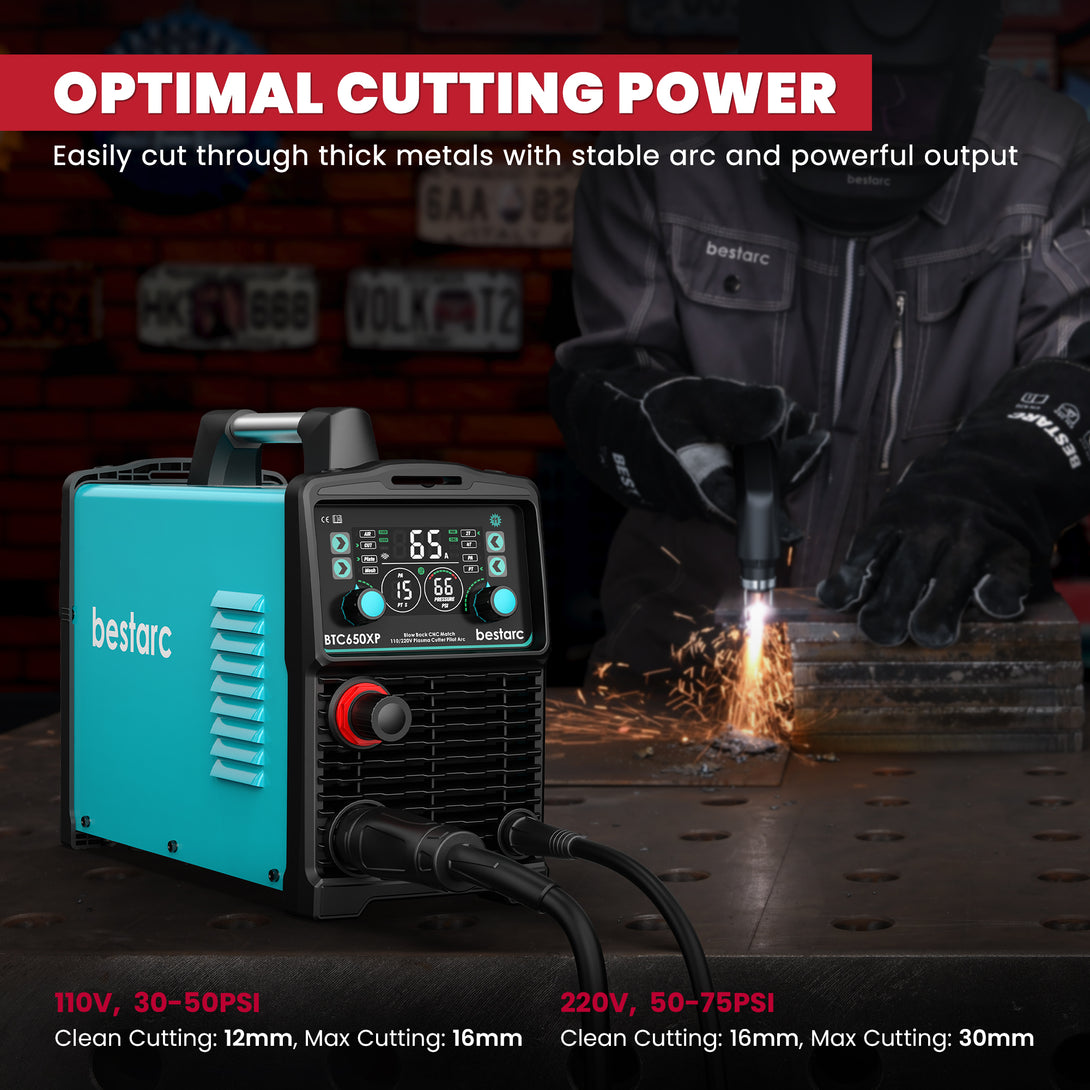

  • [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2” clean cuts on Iron, Steel aluminum and copper with Inverter IGBT technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 5/8” (16mm)@35A 110V 50PSI; 1.18” (30mm)@50A 220V 65PSI. Dry and compressed air is required. Power breaker up to 60A@110V 35A; Up to 50A@220V 65A.

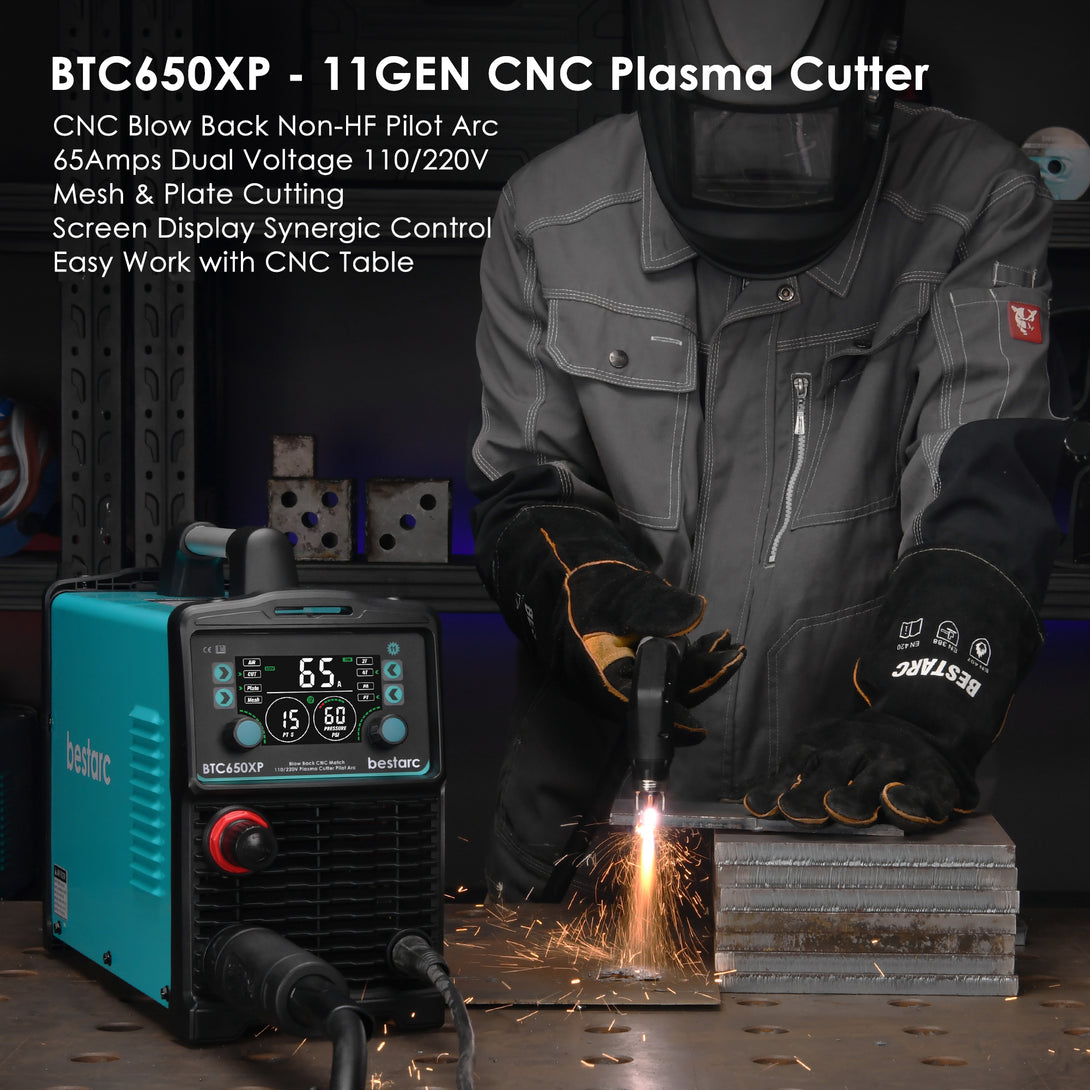

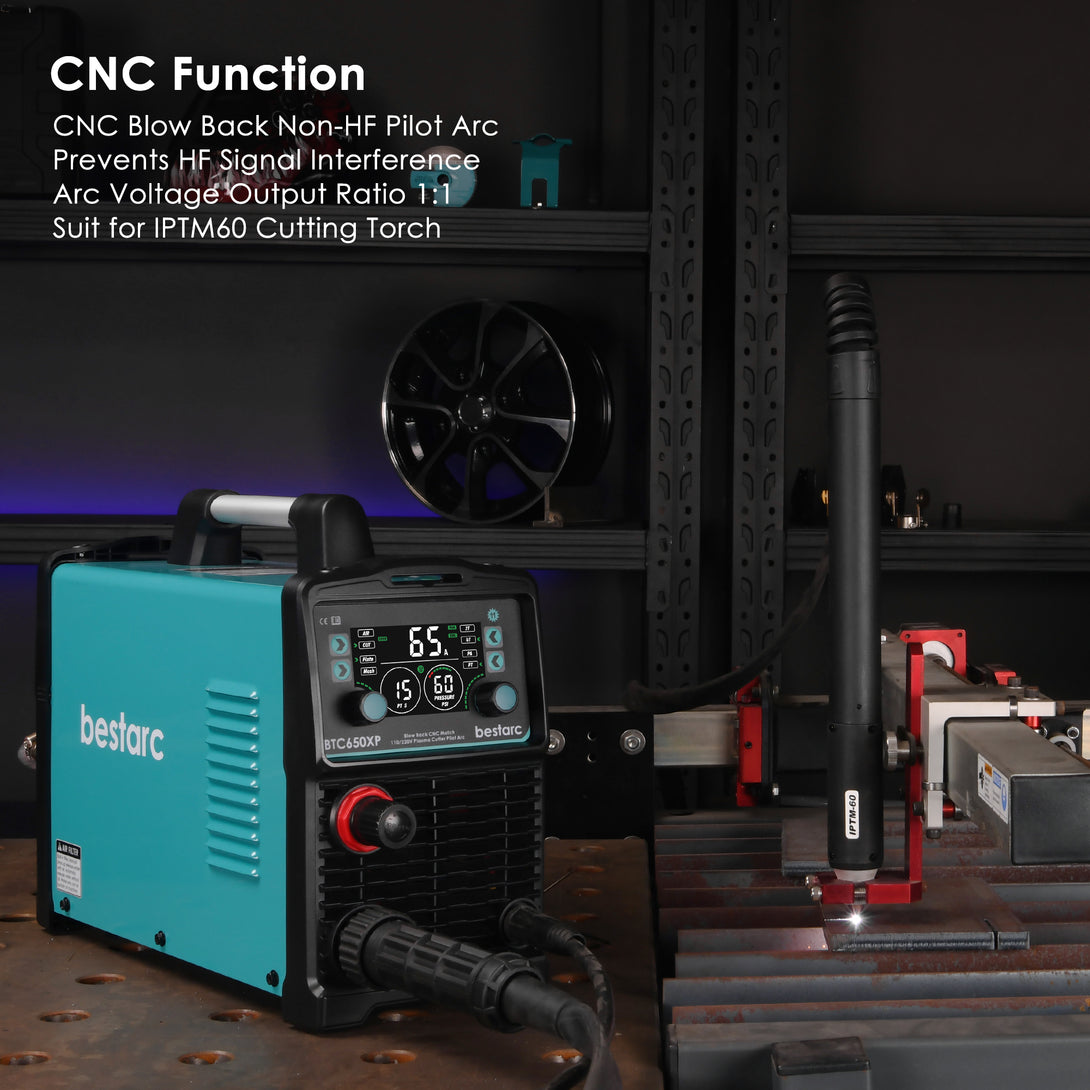

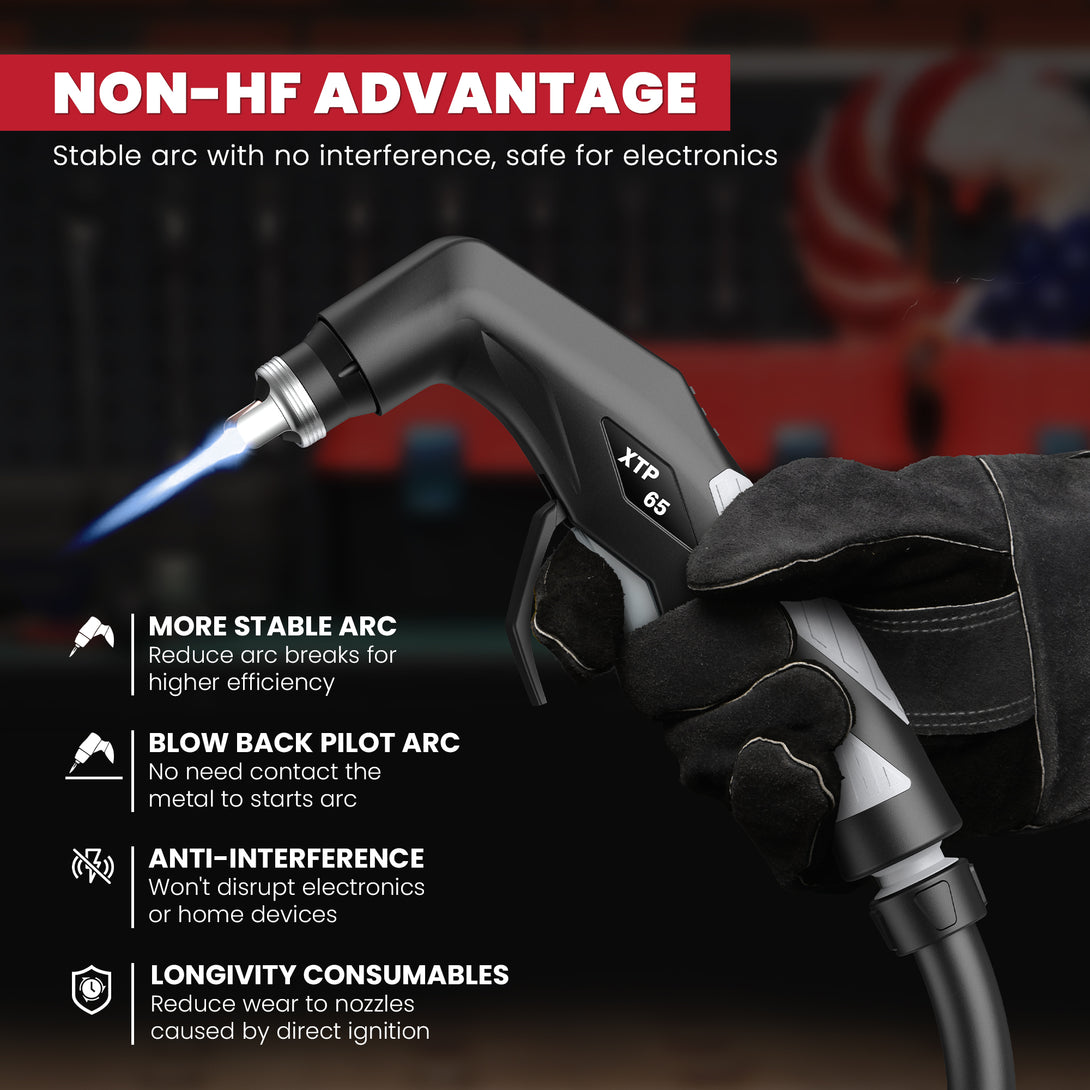

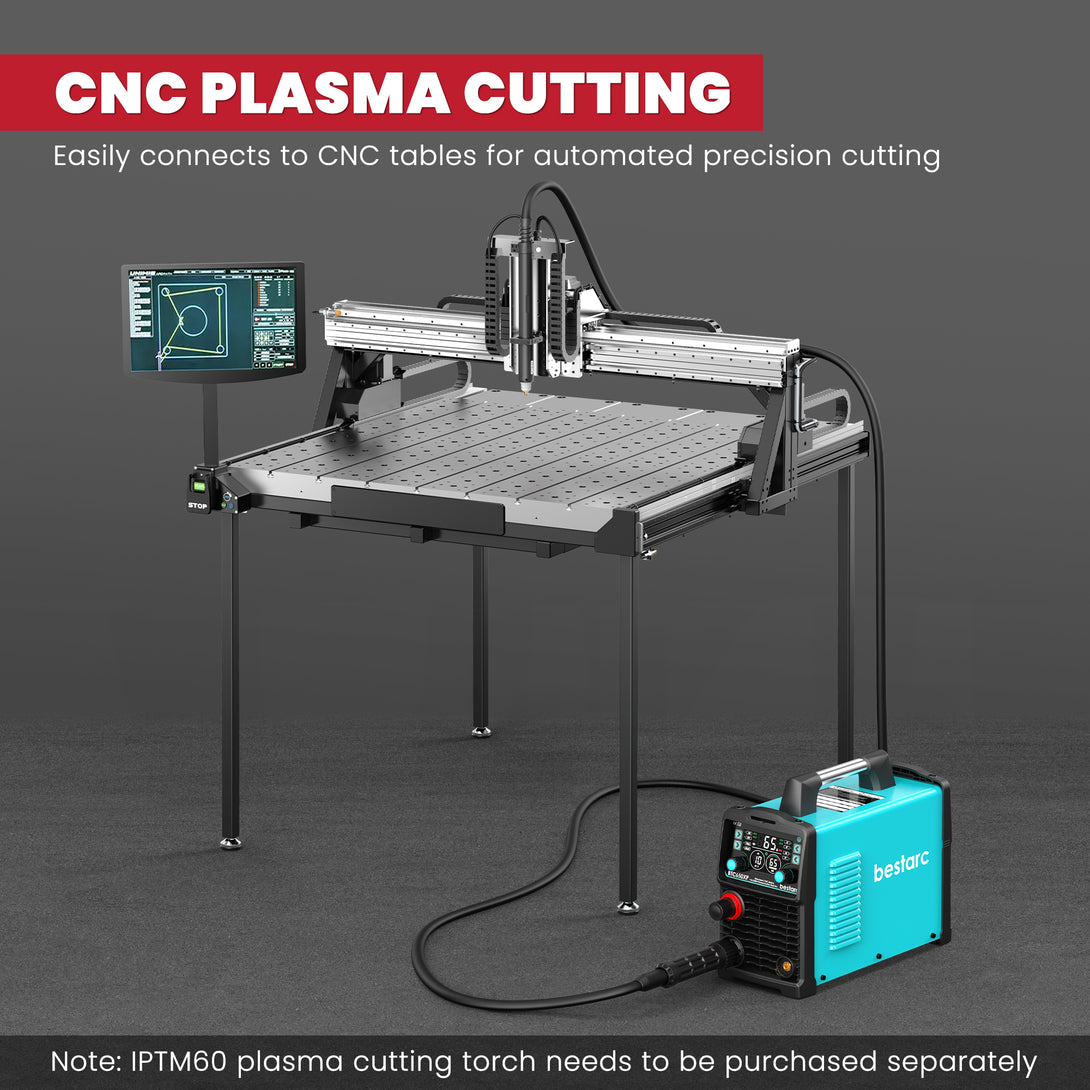

  • [Blow Back Pilot Arc]: Bestarc plasma cutter features a blow back Technology, Non-HF pilot arc with CNC capability, Which prevents high-frequency signal interference and enhances cutting stability, blow back pilot arc non-touch the metal start the arc, plasma cutter machine has two connection ports: 2-pin connector for arc voltage output (1:1 ratio) and 5-pin connector for signal control. This design makes it easy to work with CNC cutting tables.

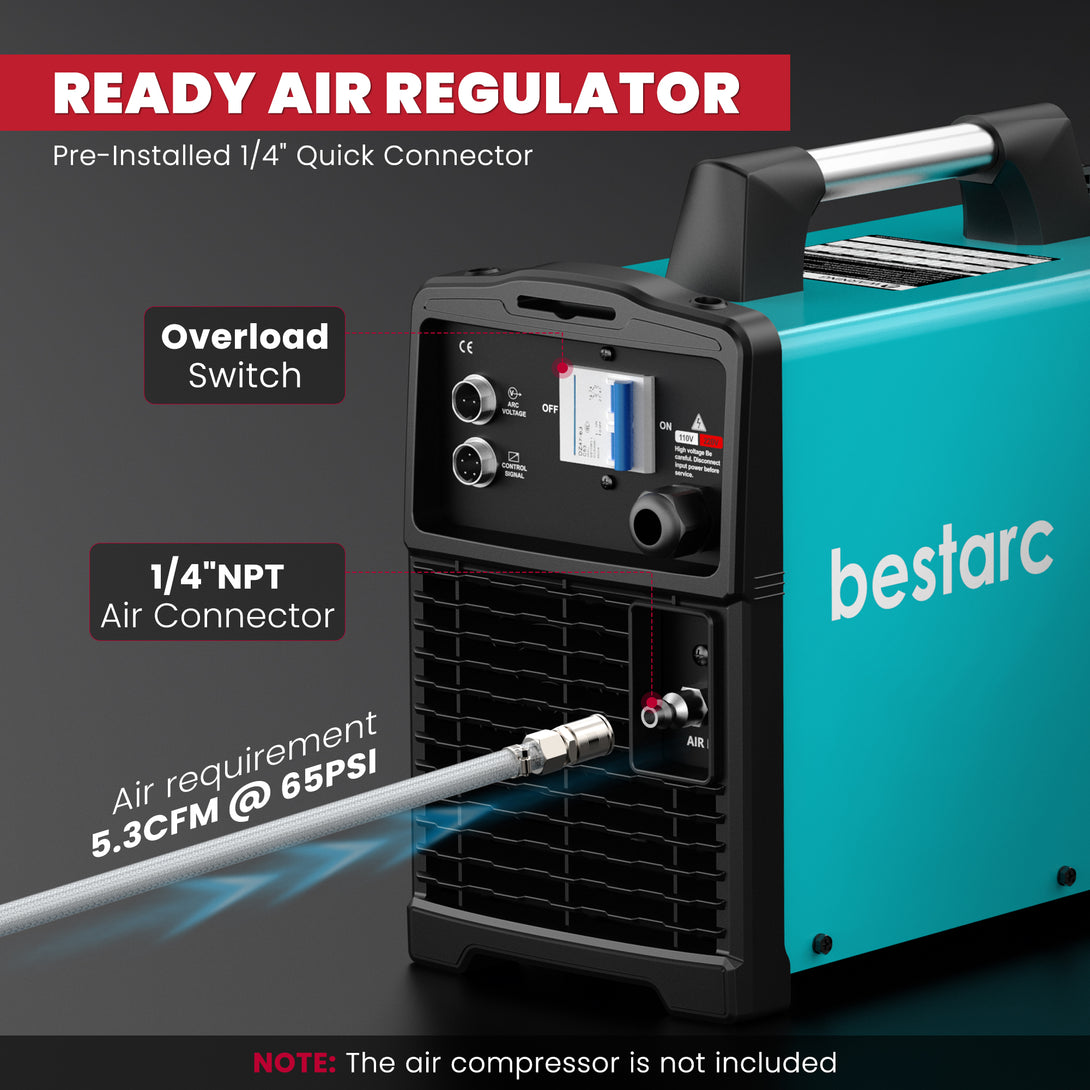

  • [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute
  • [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.

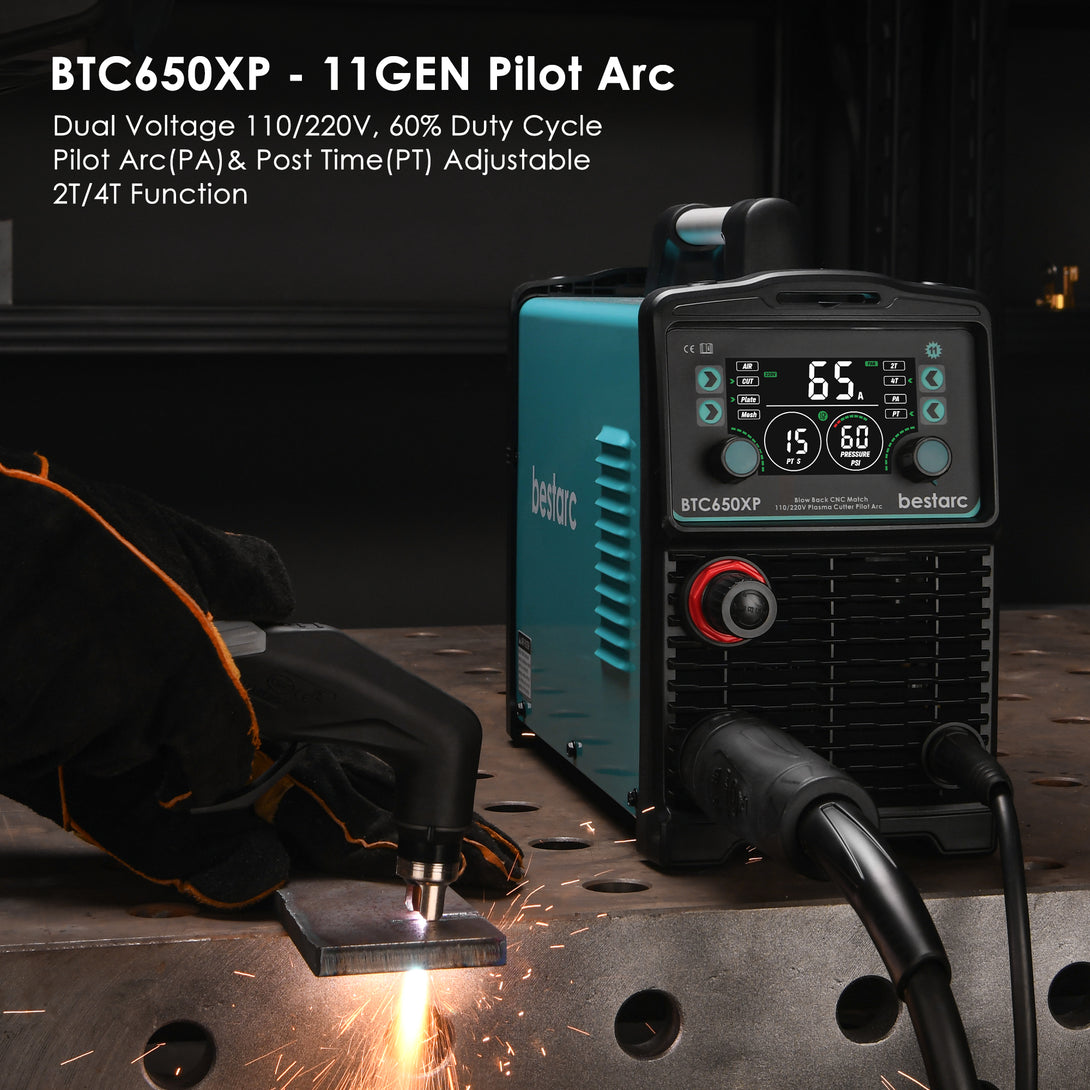

  • [2T/4T/PA/PT Function]: Adjustable post flow (3-15s) cools the torch and extends consumable life. PA timing up to 15s for mesh cutting or longer consumable durability. 2T/4T mode enables flexible cutting control with reduced finger fatigue.

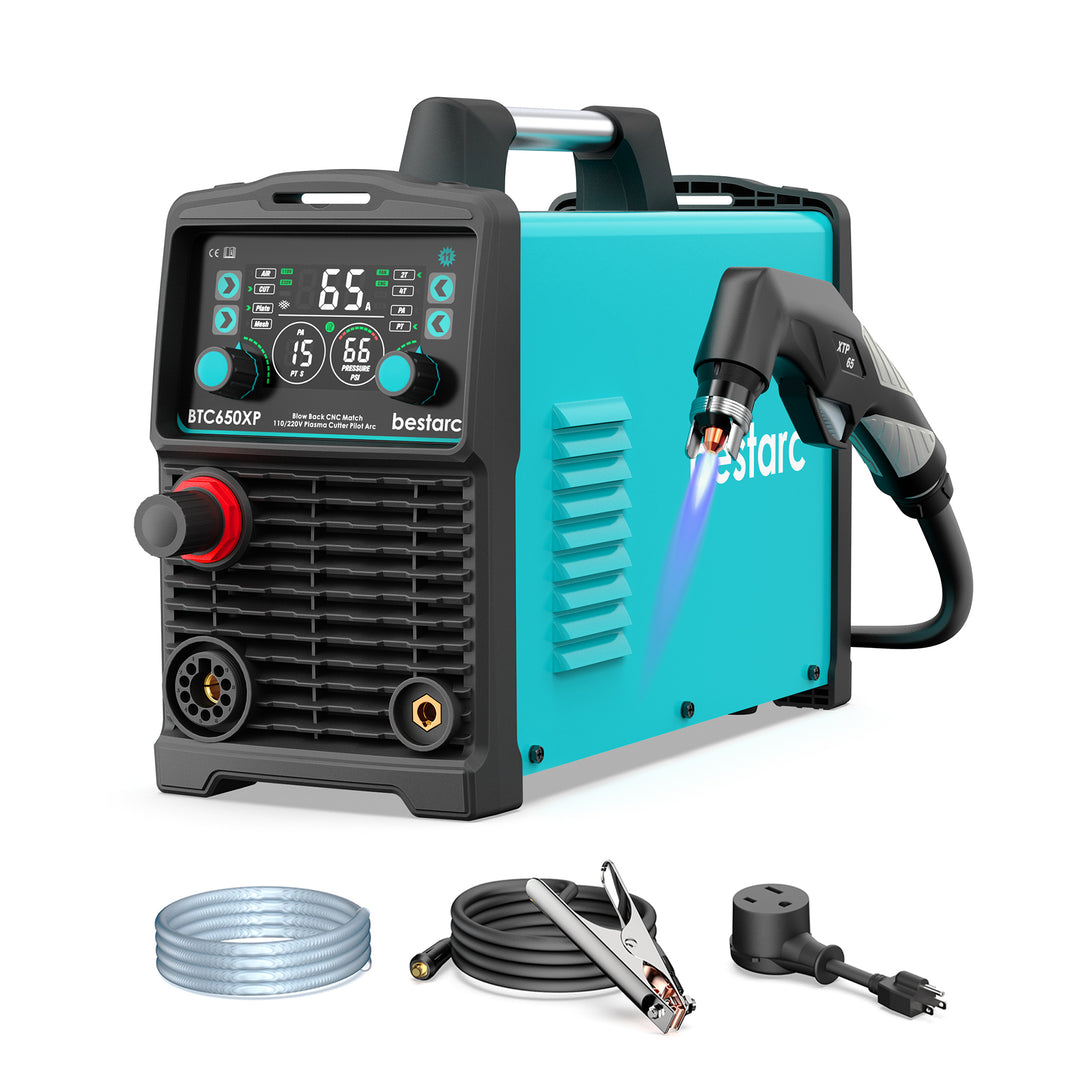

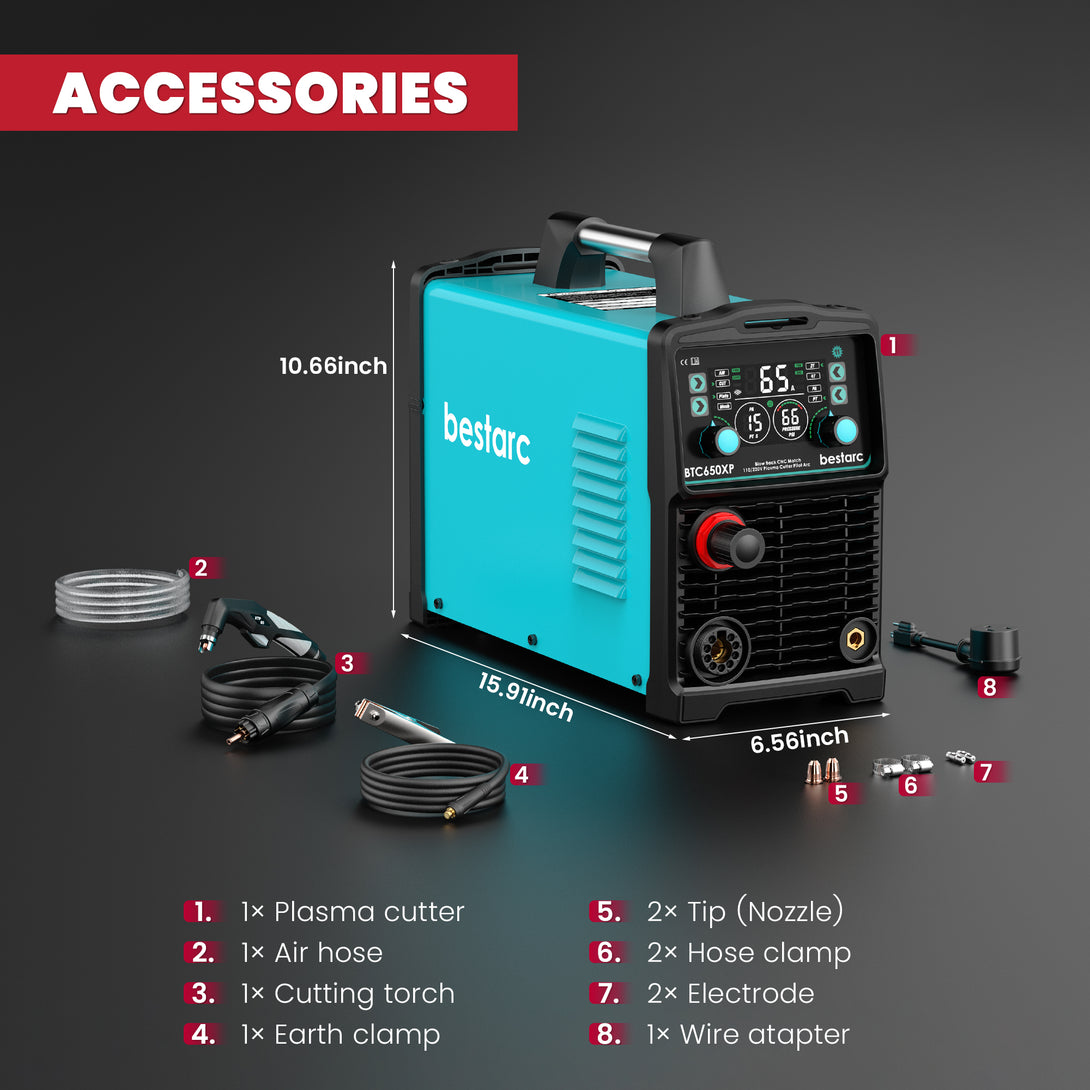

Package Included

1x Plasma cutter
1 x Earth clamp with 10-25 plug
1 x Cutting torch
1x Air hose
1 x Wire adaptor
2 x Aviation plug
2 x Hose clamp
2 x Electrode
2 x Tip (Nozzle)

Frequently Bought Together

Quick view IPT60 Plasma Cutting Torch Tip Nozzles Kit
IPT60 Plasma Cutting Torch Tip Nozzles Kit
$45.99 $46.99
Quick view CNC Plasma Cutting Torch IPTM60 20FT
CNC Plasma Cutting Torch IPTM60 20FT
$159.00
Quick view bestarc Magnetic MIG TIG Welding Torch Holder
bestarc Magnetic MIG TIG Welding Torch Holder
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Ask a Question
Product description
Parameter
Warranty
Customer Review
Video Review

参数表格

Model BTC650XP 11GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 60% @65Amps 60% @40Amps
Rated Power (KVA) 9.4 5.7
Input Current Range (A) 12-43 20-52
Output Current Range (A) 15-65 15-40
Rated Output Voltage (V) 106 96
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 40-65psi 40-65psi
Clean Cutting Thickness (mm) 15mm 10mm
Cutting Thickness Severance (mm) 18mm@65psi 12mm@65psi
Machine Dimensions (mm) 405*168*270mm 405*168*270mm
Shipping Weight (kgs) 7.4kgs 7.4kgs
Air Flow Rate (CFM) 150L/min 150L/min

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product description

Parameter

参数表格

Model BTC650XP 11GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 60% @65Amps 60% @40Amps
Rated Power (KVA) 9.4 5.7
Input Current Range (A) 12-43 20-52
Output Current Range (A) 15-65 15-40
Rated Output Voltage (V) 106 96
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 40-65psi 40-65psi
Clean Cutting Thickness (mm) 15mm 10mm
Cutting Thickness Severance (mm) 18mm@65psi 12mm@65psi
Machine Dimensions (mm) 405*168*270mm 405*168*270mm
Shipping Weight (kgs) 7.4kgs 7.4kgs
Air Flow Rate (CFM) 150L/min 150L/min

Warranty

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.
