bestarc BTC650DP 10GEN Pilot Arc Plasma Cutter 110/220V Dual Voltage

$429.99 USD $329.99 USD SAVE 23%

3 Year Warranty

Pre-sale, save 15% when you add to cart!

PLUG SPECIFICATION: US(110/220V)

US(110/220V)
No-Plug
Compare

Features:

  1. High Cost-performance Pilot Arc Plasma Cutter
  2. Easy to Set Up, PT/2T/4T/PA Function

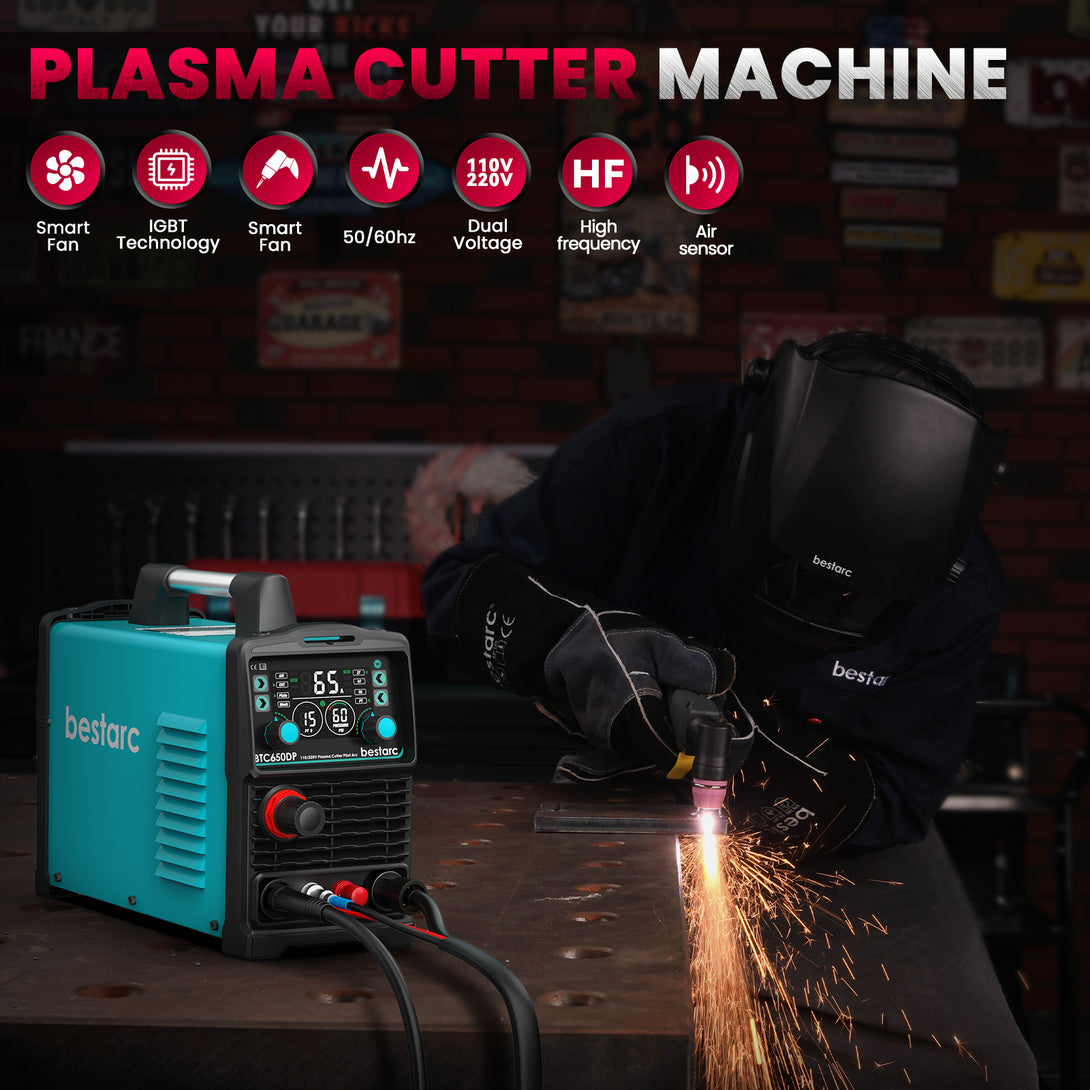

  3. IGBT Inverter Technology
  4. Built-in air filter
  5. Circuit Breaker Requirements:60A for 110V, 40A for 220V
Key Features & Benefits

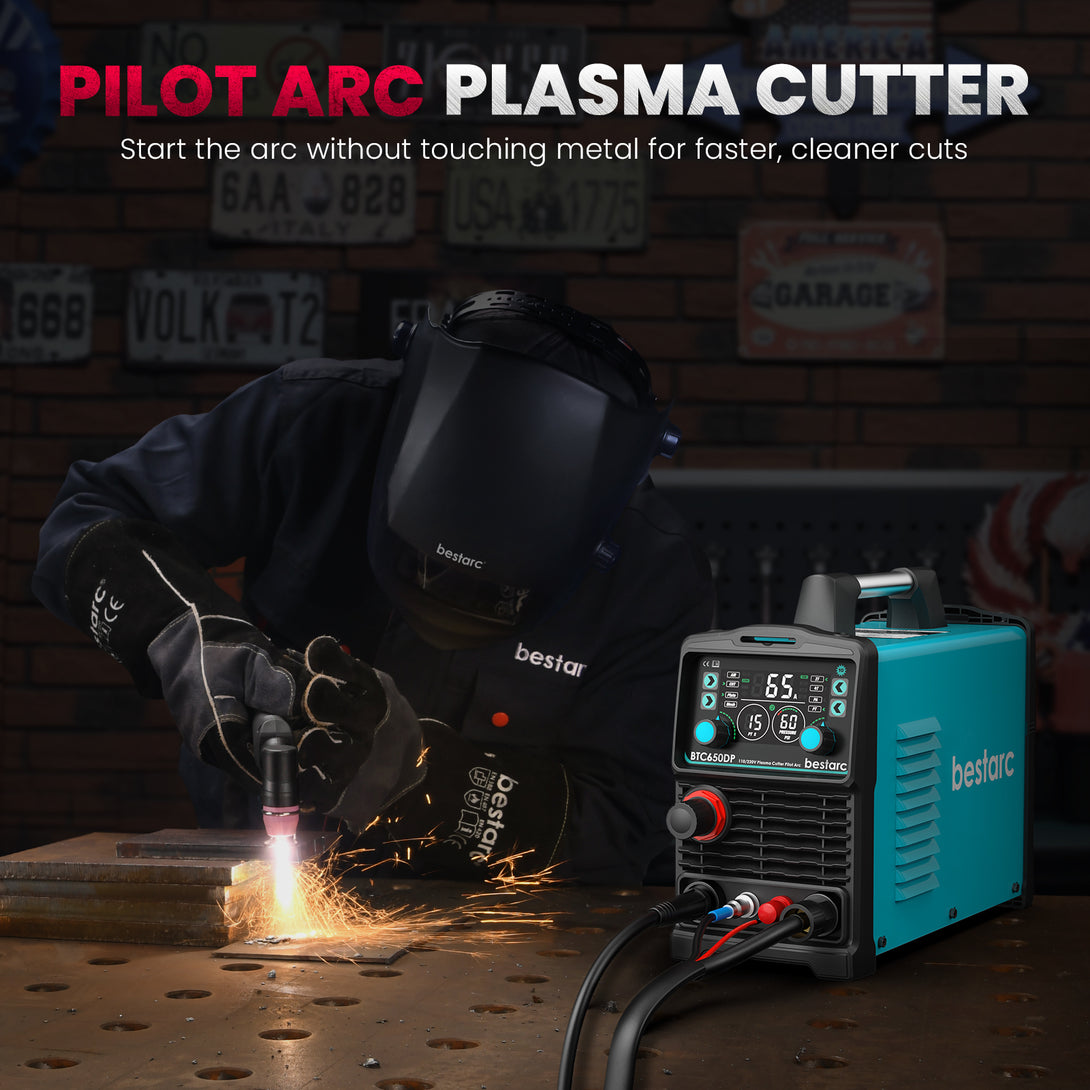

  • [Pilot Arc Function]: BTC650DP 10th plasma cutter has the pilot arc function. It is a high frequency non-touch arc starting mode. The torch head does not need to touch the metal plate. Added PA adjustable function, extended pilot arc maintenance time, reduce energy consumption in non-cutting work, reduce electrode burning, and extend service life
  • [Digital Screen Display]: Machine adopt air seonsor technology, the screen centrally display parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If plasma cutter cannot work, the screen comes with an error code system, making it easy to find out the problems

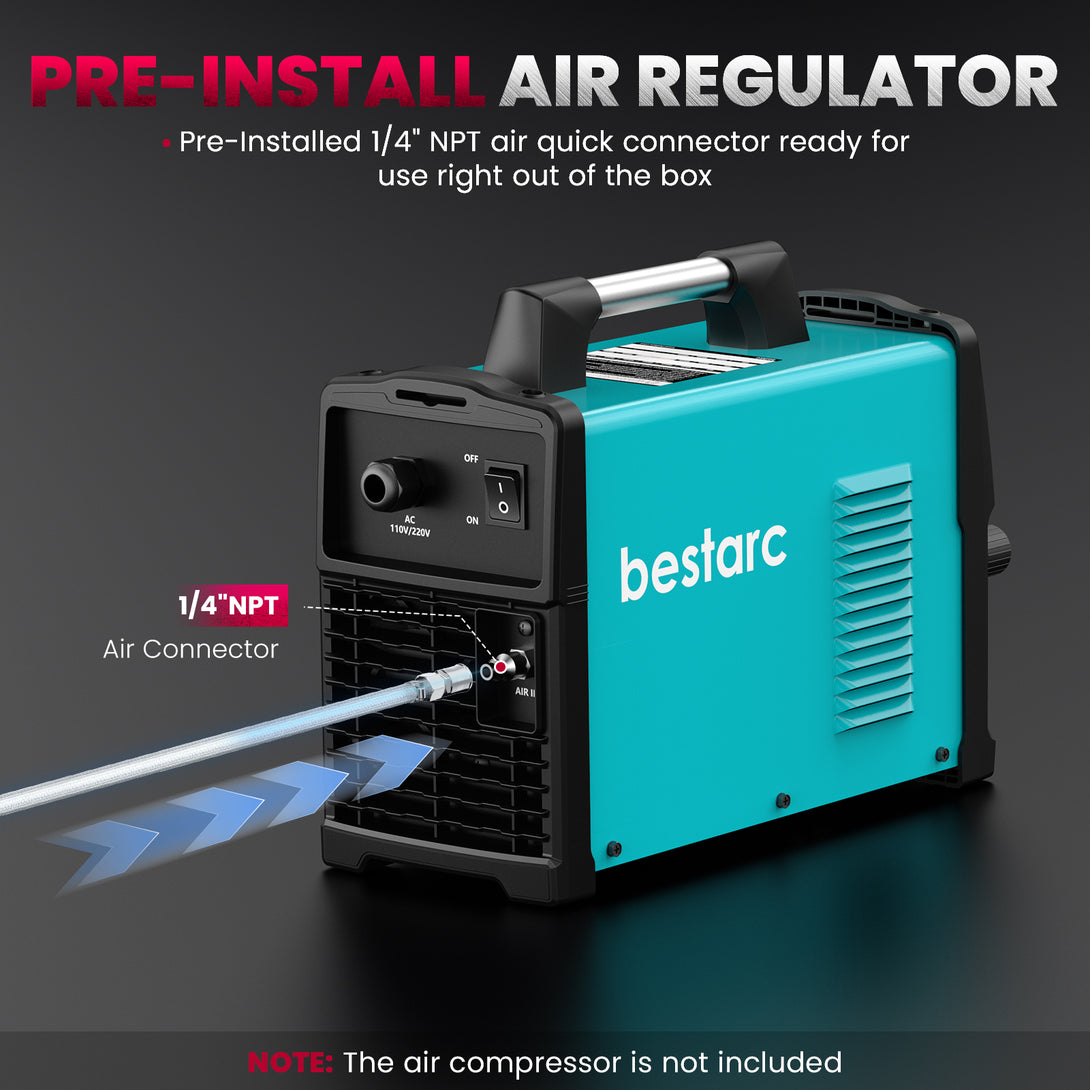

  • [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute

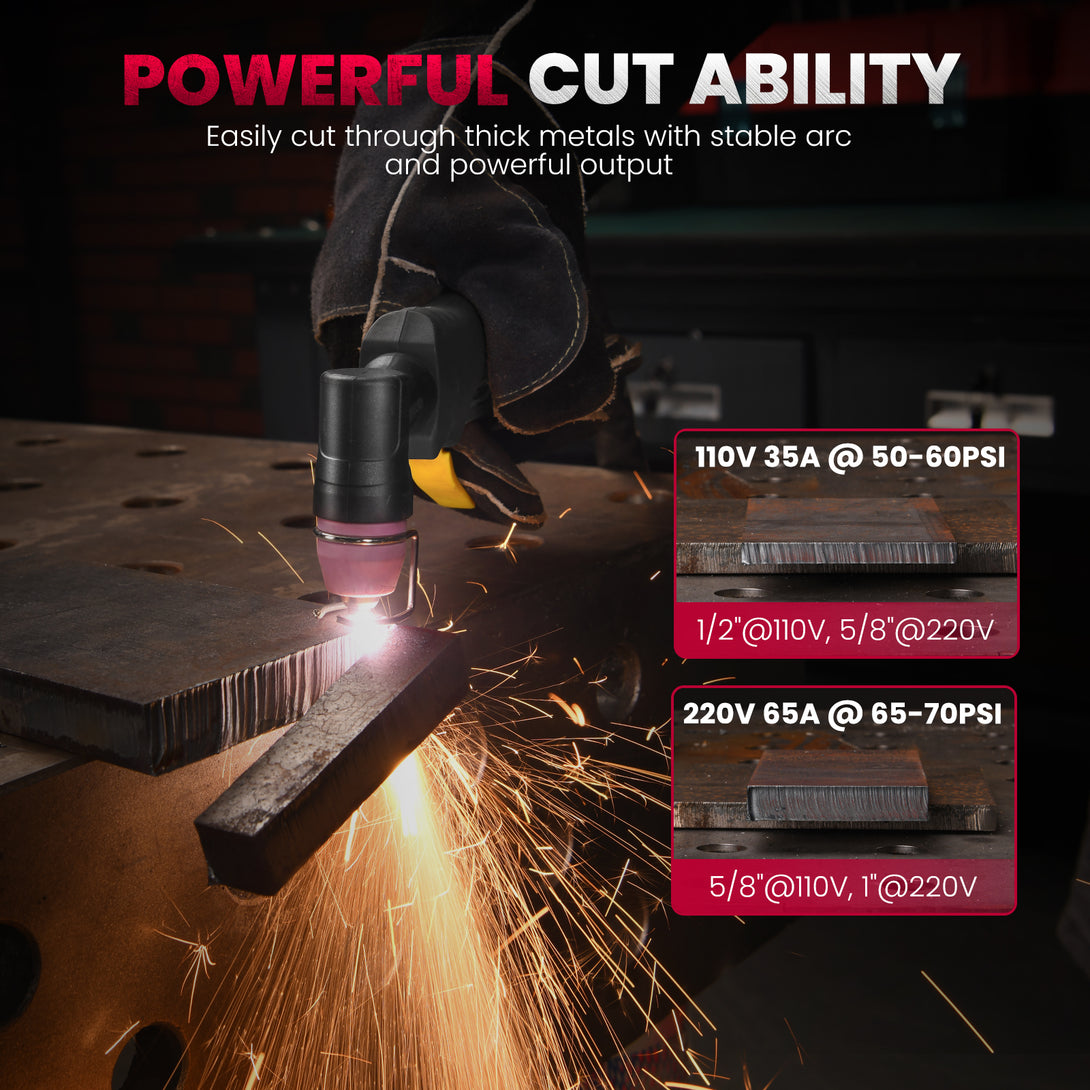

  • [Cutting Thickness]: HF pilot arc plasma cutter boasts an automatic detection feature for input voltages of both 110V and 220V, 60% duty cycle single phase. It is recommended for cutting thicknesses up to 14mm at 40A on 110V with 50PSI, 20mm at 65A on 220V with 70PSI. The circuit breaker specifications require a 60A unit for 110V operation and a 40A unit for 220V. This versatile plasma cutter is ideal for use on materials including stainless steel, alloy steel, mild steel, copper, aluminum, etc

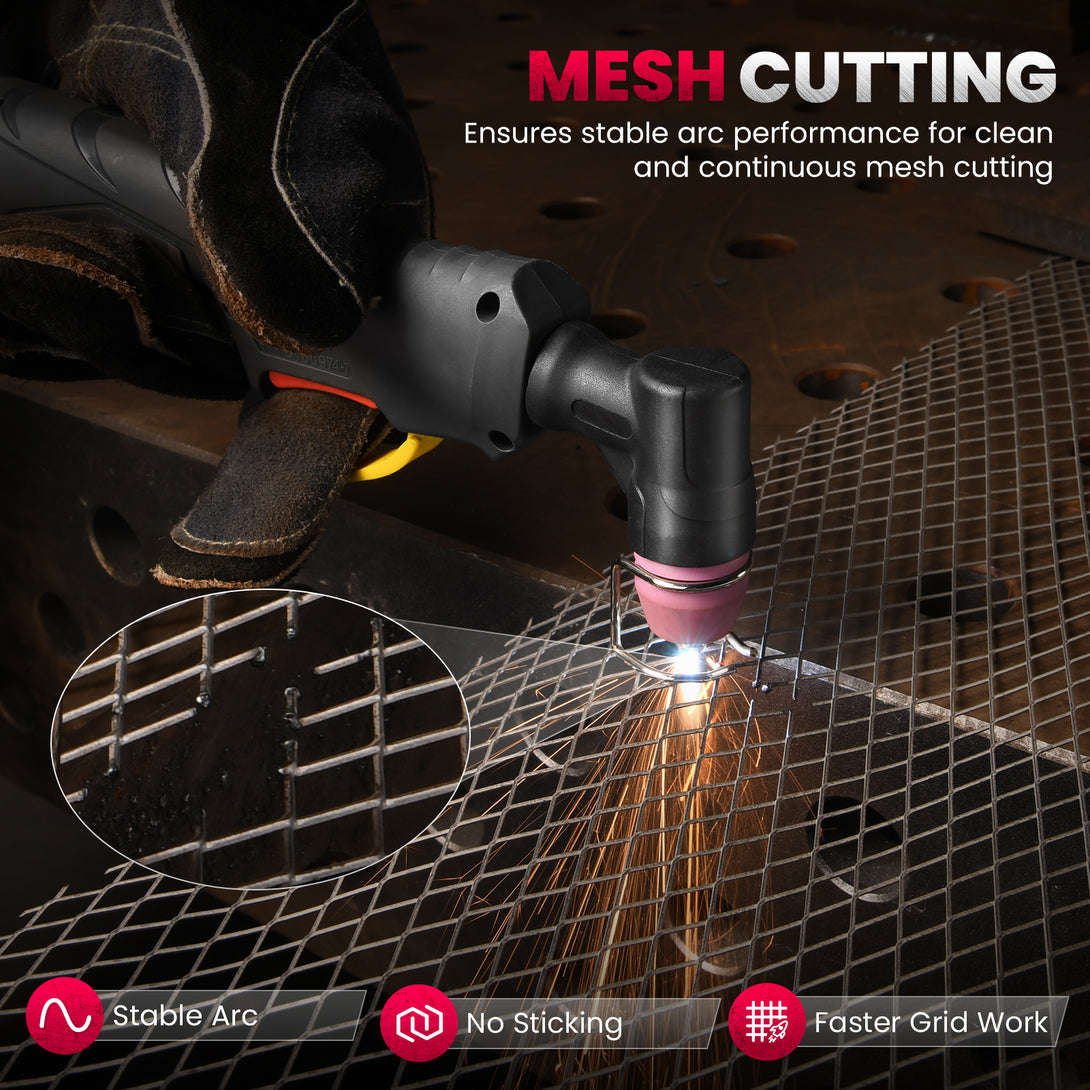

  • [PT/2T/4T/PA Function]: Post-flow cooling time ranging from 3 to 15s extends the torch head and consumables life. The 2T mode on the plasma cutter provides semi-automatic control torch trigger, while the 4T mode enables automatic trigger, free your finger. PA adjusted the time for the pilot arc. This bestarc plasma cutter BTC650DP 10GEN also includes a mesh cutting mode to solve the problem of arc breaking when cutting mesh

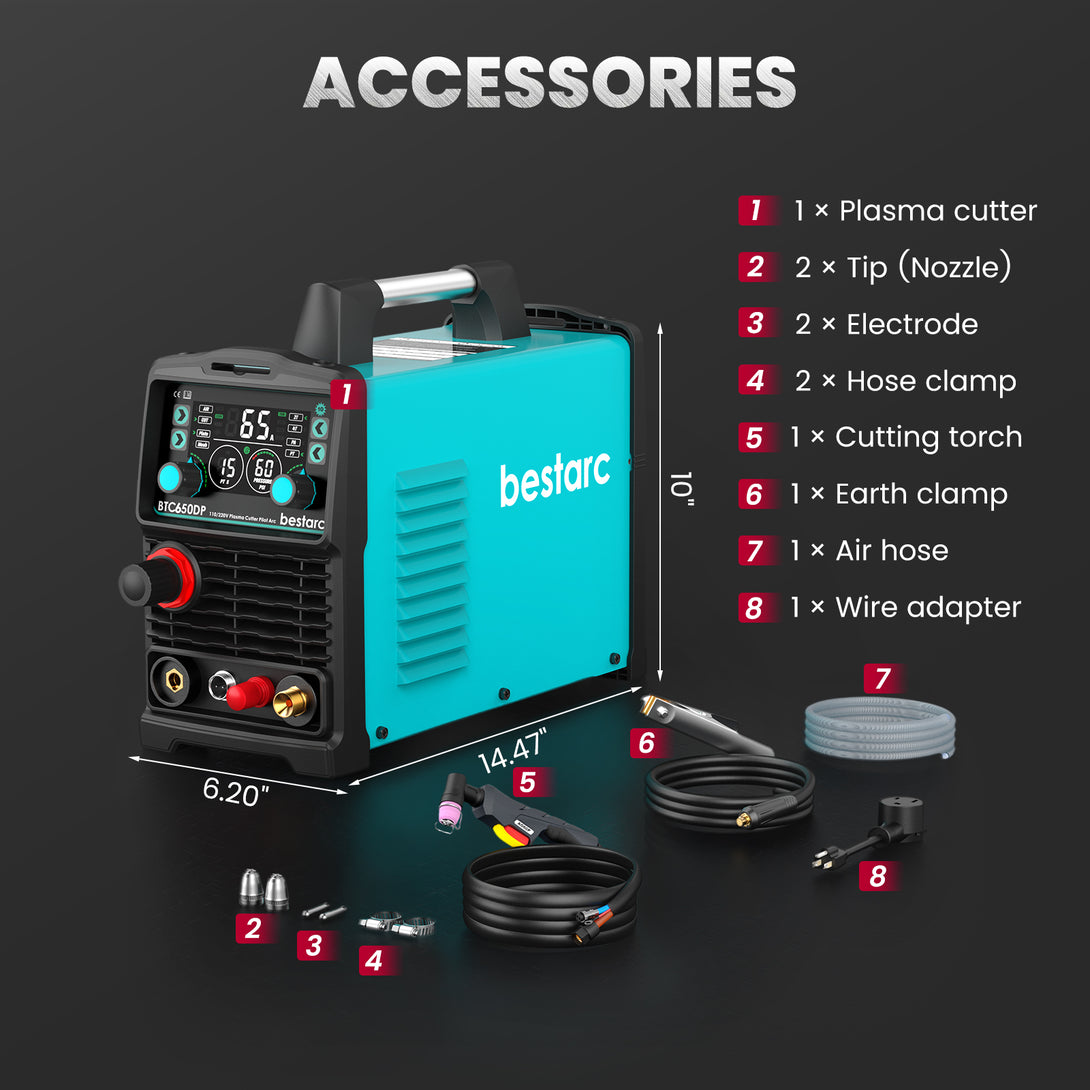

Package Included

Frequently Bought Together

Quick view bestarc plasma cutter torch consumables kit with storage box, nozzle, electrode and shield cup set
bestarc AG60P Cutting Torch Tip Nozzles Kit with Storage Box 50PCS
$30.99 $49.99
Quick view bestarc AG60P Plasma Cutter Consumables 50PCS
bestarc AG60P Plasma Cutter Consumables 50PCS
$25.99 $39.99
Quick view bestarc AG60P Cutting Torch Tip Nozzles Kit 40PCS
bestarc AG60P Cutting Torch Tip Nozzles Kit 40PCS
$21.99 $34.99
Quick view bestarc AG60P Plasma Cutter Consumables 24PCS
bestarc AG60P Plasma Cutter Consumables 24PCS
$14.99 $21.99
Quick view AG60P Plasma Cutting Torch
AG60P Plasma Cutting Torch
$49.99
Quick view bestarc Magnetic MIG TIG Welding Torch Holder
bestarc Magnetic MIG TIG Welding Torch Holder
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Ask a Question
Product description
Parameter
Warranty
Customer Review
Video Review



参数表格

Model BTC650XP 11GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 60% @65Amps 60% @40Amps
Rated Power (KVA) 9.4 5.7
Input Current Range (A) 12-43 20-52
Output Current Range (A) 15-65 15-40
Rated Output Voltage (V) 106 96
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 40-65psi 40-65psi
Clean Cutting Thickness (mm) 15mm 10mm
Cutting Thickness Severance (mm) 18mm@65psi 12mm@65psi
Machine Dimensions (mm) 405*168*270mm 405*168*270mm
Shipping Weight (kgs) 7.4kgs 7.4kgs
Air Flow Rate (CFM) 150L/min 150L/min
