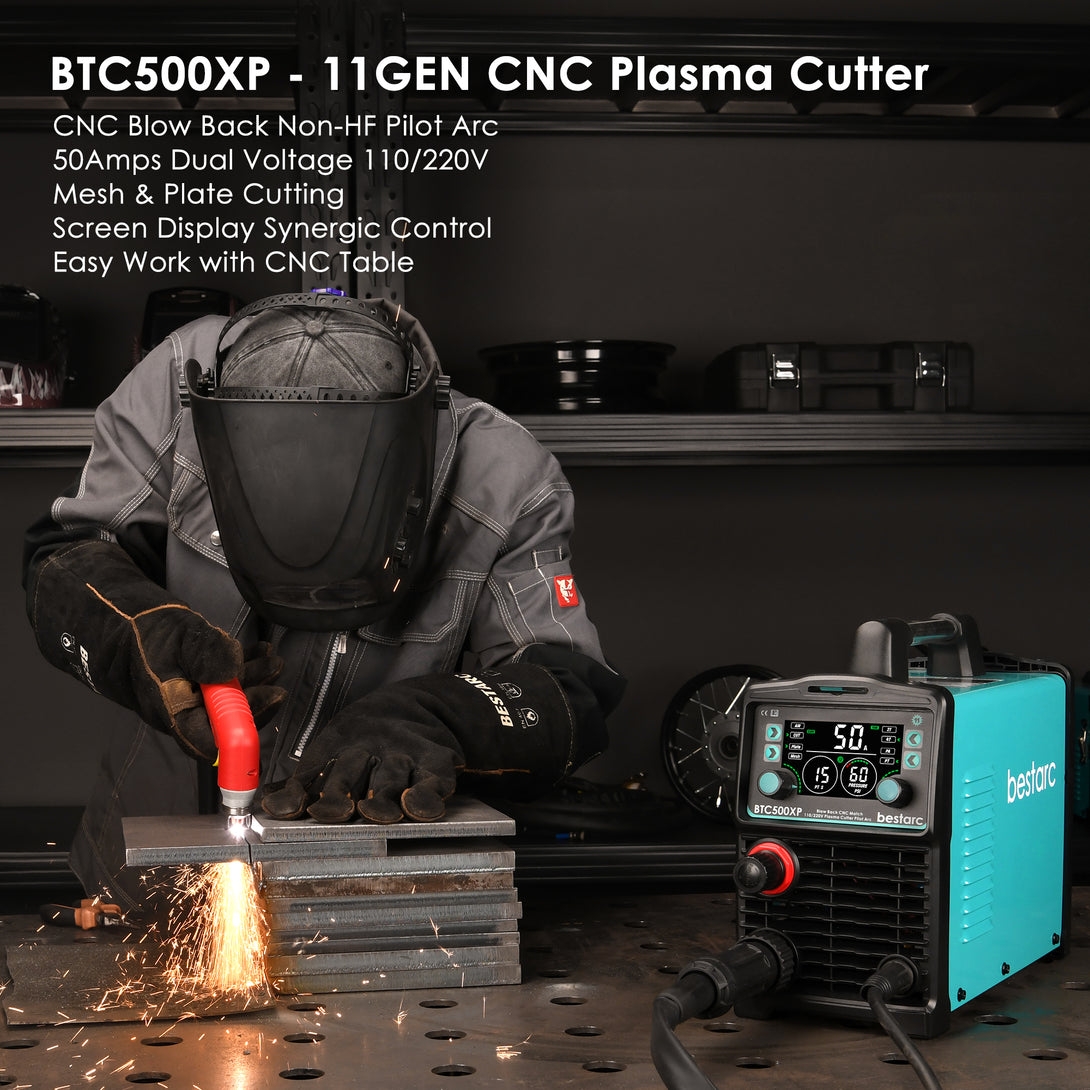

bestarc BTC500XP 11GEN Non-HF Plasma Cutter

$499.99 USD $399.99 USD SAVE 20%

3 Year Warranty

Pre-sale, save 15% when you add to cart!

Plug specification: US( 110/220V )

US( 110/220V )
EU( 220V )
AU( 220V )
Compare

Features:

  1. Super light and easy to carry
  2. Blow Back Technology & Non-HF Pilot Arc
  3. Built In Air Regulator & Filter
  4. Ideal clean cut :12mm 110V@35A,50PSI;
  5. Circuit Breaker Requirements:40A for 110V, 30A for 220V
Key Features & Benefits

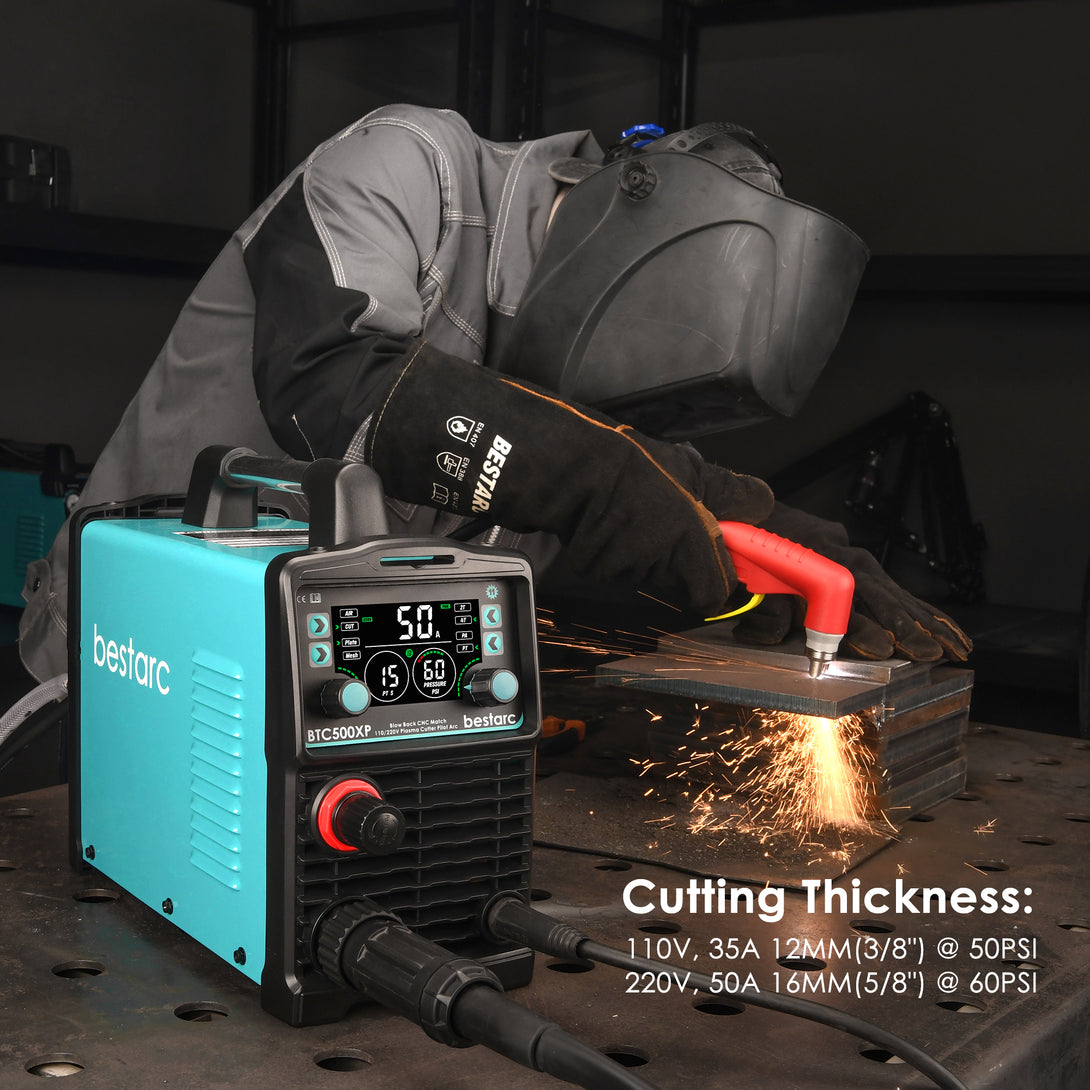

  • [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2”clean cuts on Iron, Steel aluminum and copper with Inverter IGBT technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 5/8”(16mm)@35A 110V 50PSI; 1”(26mm)@50A 220V 65PSI. Dry and compressed air is required. Power breaker up to 40A@110V 35A; Up to 30A@220V 50A.
  • [Blow Back Pilot Arc]: Bestarc plasma cutter features a blow back Technology, Non-HF pilot arc with CNC capability, Which prevents high-frequency signal interference and enhances cutting stability, blow back pilot arc non-touch the metal start the arc, plasma cutter machine has two connection ports: 2-pin connector for arc voltage output (1:1 ratio) and 5-pin connector for signal control. This design makes it easy to work with CNC cutting tables.
  • [Air Sensor Technology]: The air sensor built in machine displays air pressure on front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). Air filter is installed in the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 65 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.
  • [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.

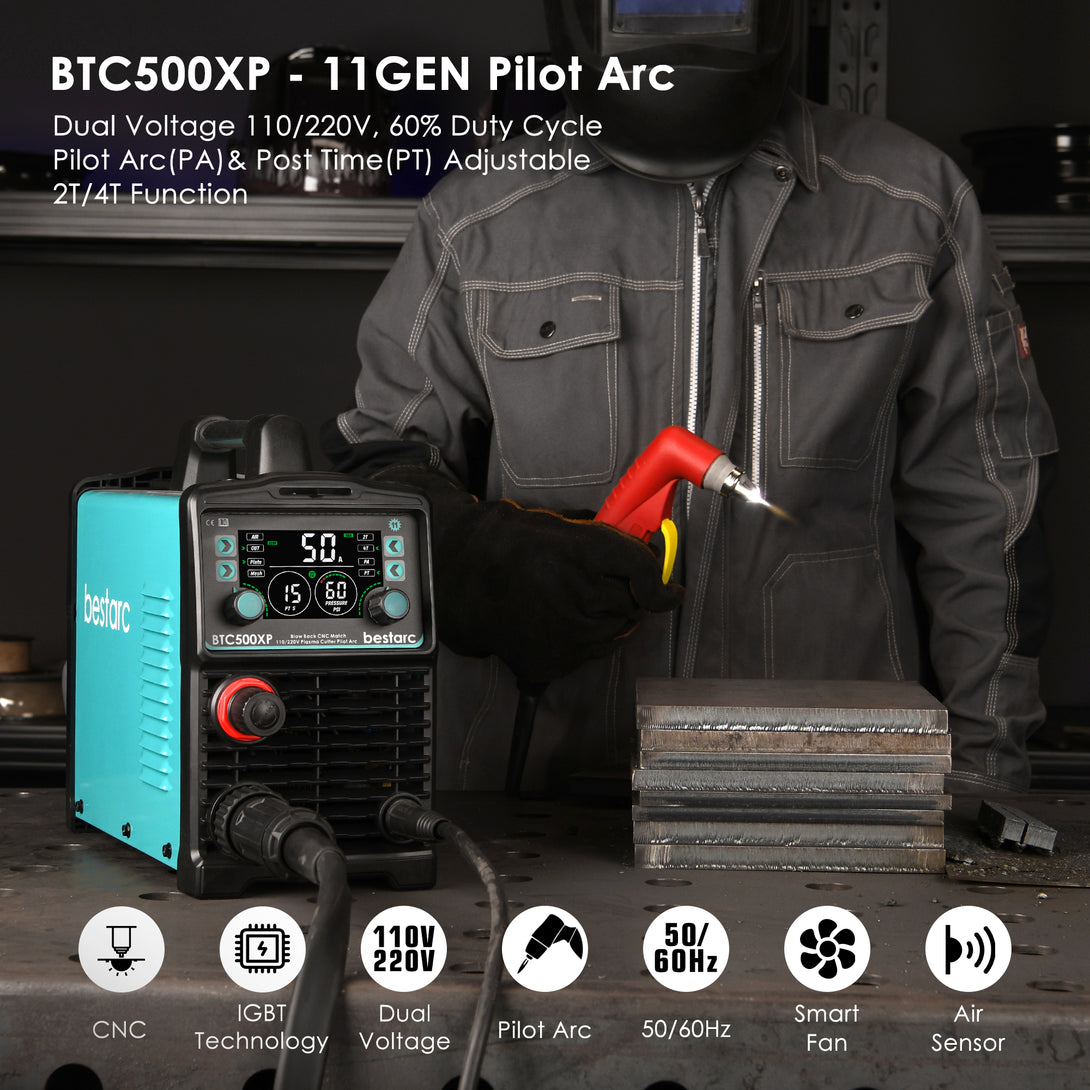

  • [2T/4T/PA/PT Function]: Adjustable post flow (3-15s) cools the torch and extends consumable life. PA timing up to 15s for mesh cutting or longer consumable durability. 2T/4T mode enables flexible cutting control with reduced finger fatigue.

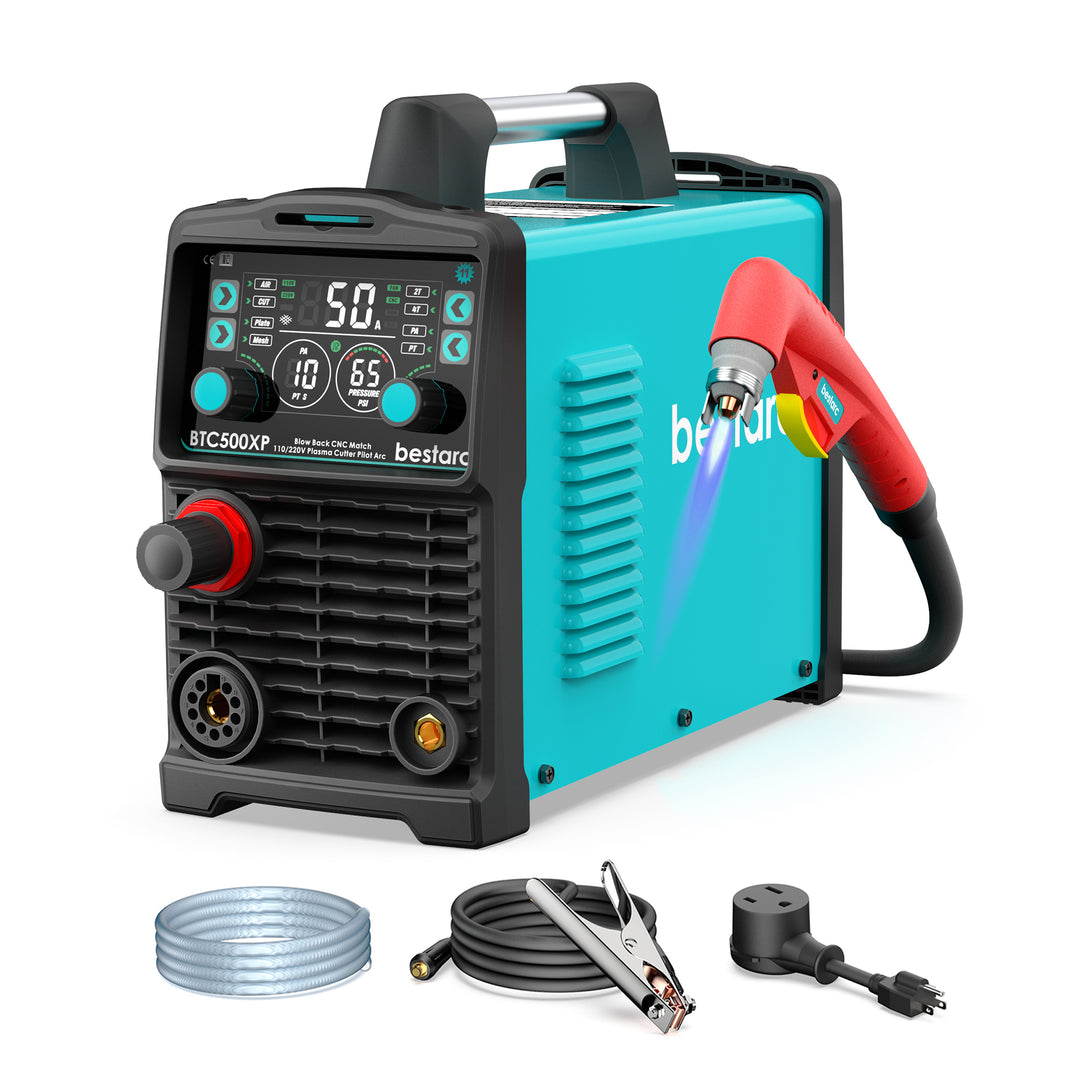

Package Included

1x Plasma cutter
1x Earth clamp with 10-25 plug
1 x Cutting torch
1x Air hose
1 x WVire adaptor
2 x Aviation plug
2 x Hose clamp
2 x Electrode
2 x Tip (Nozzle)

Frequently Bought Together

Quick view IPT60 Plasma Cutting Torch Tip Nozzles Kit
IPT60 Plasma Cutting Torch Tip Nozzles Kit
$45.99 $46.99
Quick view CNC Plasma Cutting Torch IPTM60 20FT
CNC Plasma Cutting Torch IPTM60 20FT
$159.00
Quick view bestarc Magnetic MIG TIG Welding Torch Holder
bestarc Magnetic MIG TIG Welding Torch Holder
$12.99 $15.99

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay

Shipping Info with Image Below

Free Fast Shipping Experience peace of mind with our trusted logistics
Shipping Illustration

Ask a Question
Product description
Parameter
Warranty
Customer Review
Video Review

参数表格

Model BTC500XP 11GEN
Power Supply / Phases (V-Ph) 220V ±15% 110V ±10%
Duty Cycle @ 78°F (25°C) 60% @50Amps 60% @35Amps
Rated Power (KVA) 6.3 4.2
Input Current Range (A) 12 - 29 20 - 38.5
Output Current Range (A) 15 - 50 15 - 35
Rated Output Voltage (V) 100 94
No-Load Voltage (Open Circuit)(V) 274 274
Efficiency (%) 60 60
Insulation Class F F
Protection Class IP21S IP21S
Plasma Arc Starting Non - Touch Non - Touch
Air Flow Pressure Range (PSI) 30-70psi 30-50psi
Clean Cutting Thickness (mm) 14mm 10mm
Cutting Thickness Severance (mm) 16mm@65psi 12mm@65psi
Machine Dimensions (mm) 400*156*290mm 400*156*290mm
Shipping Weight (kgs) 5.66kgs 5.66kgs
Air Flow Rate (CFM) 150L/min 150L/min

🛡️3-Year Warranty
All Bestarc machines are covered by a 3-year warranty.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Alessio
Ottima macchina plasma per cnc

Presa con la speranza di migliorare la qualità del taglio. Soddisfatto dei risultati che a parità di potenza con altra macchina cinese provata, sono nettamente superiori. Ho risolto anche il problema delle interferenze. Il tutto con un prezzo della 500 11gen davvero basso

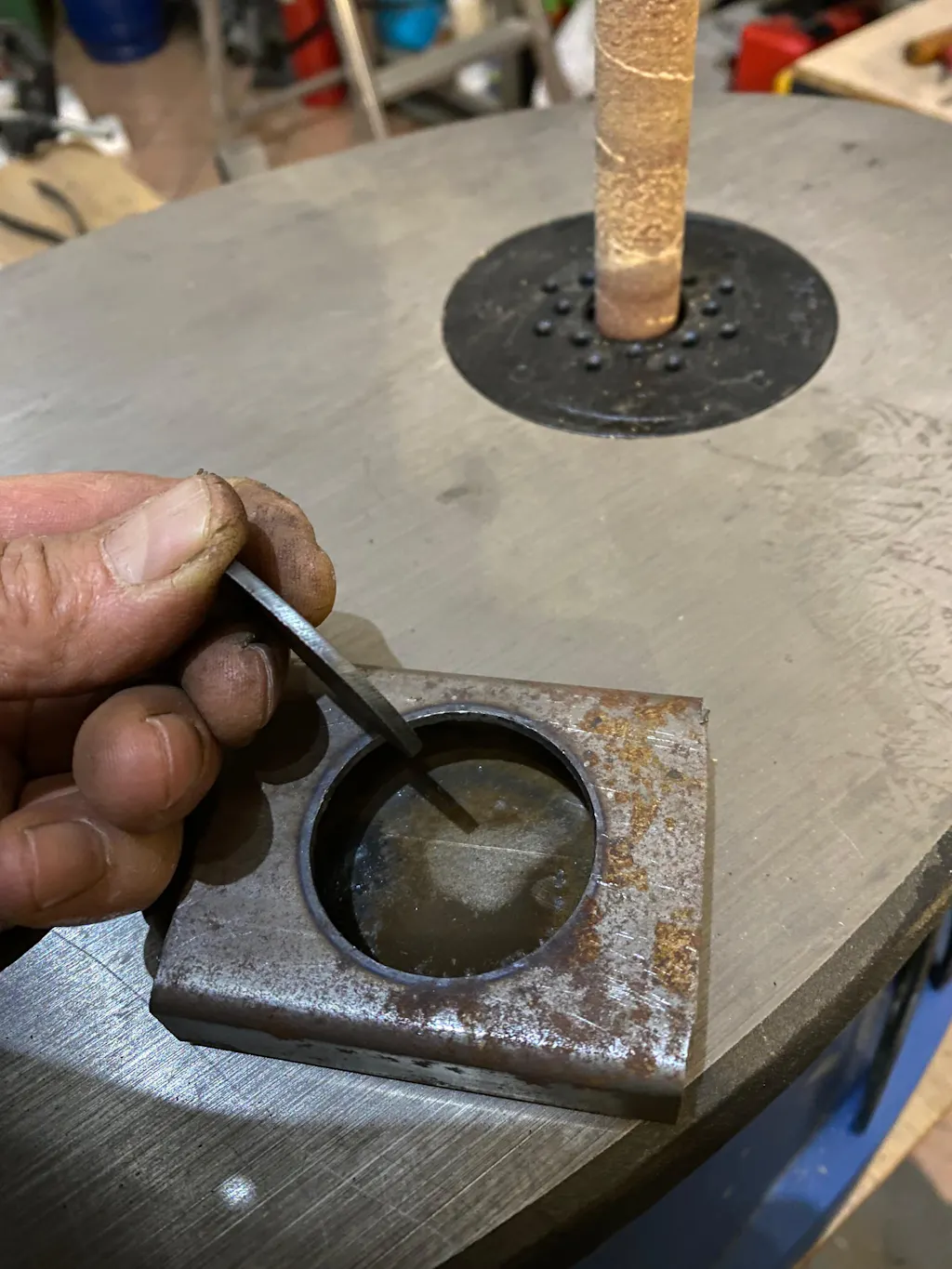

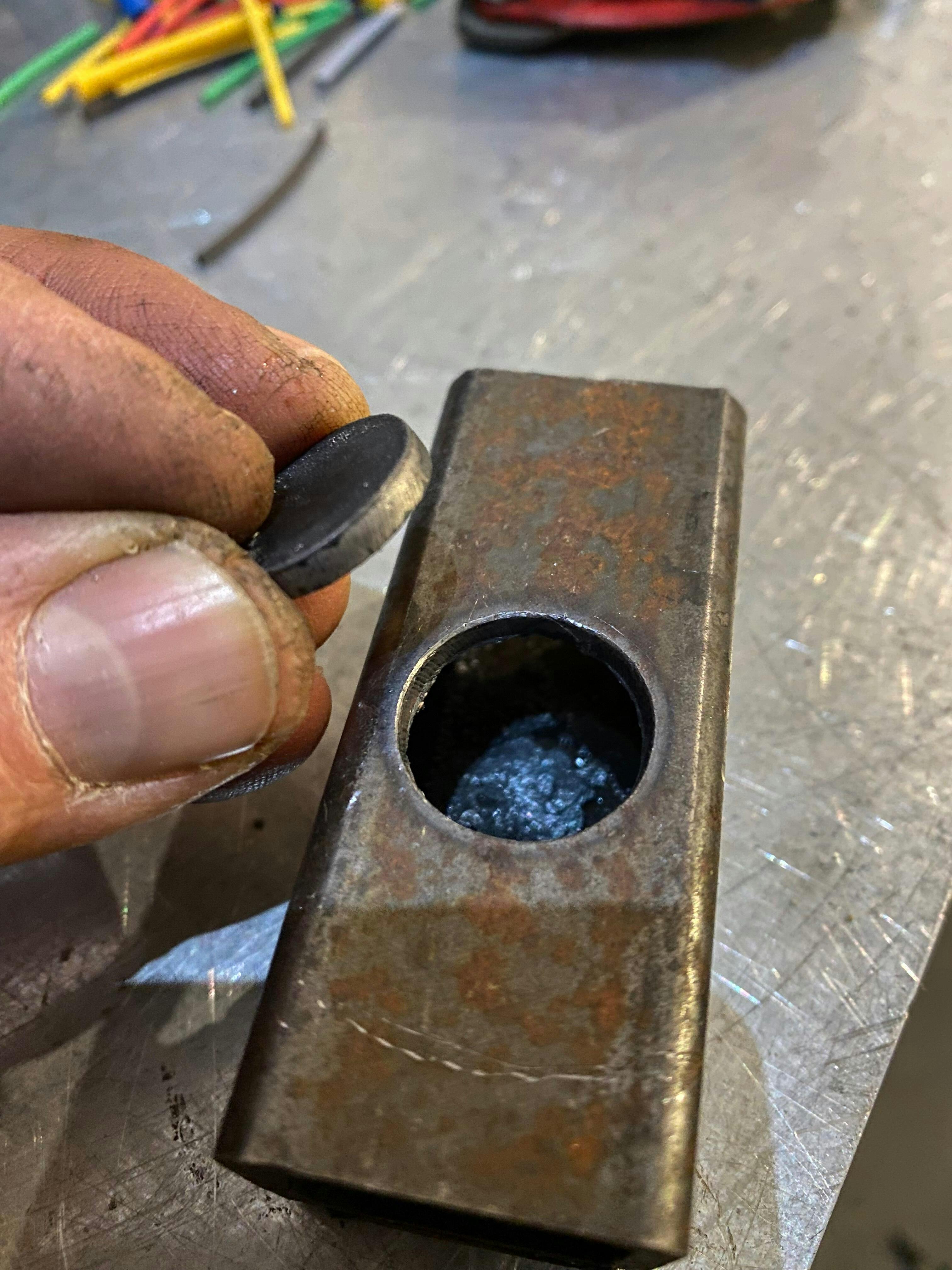

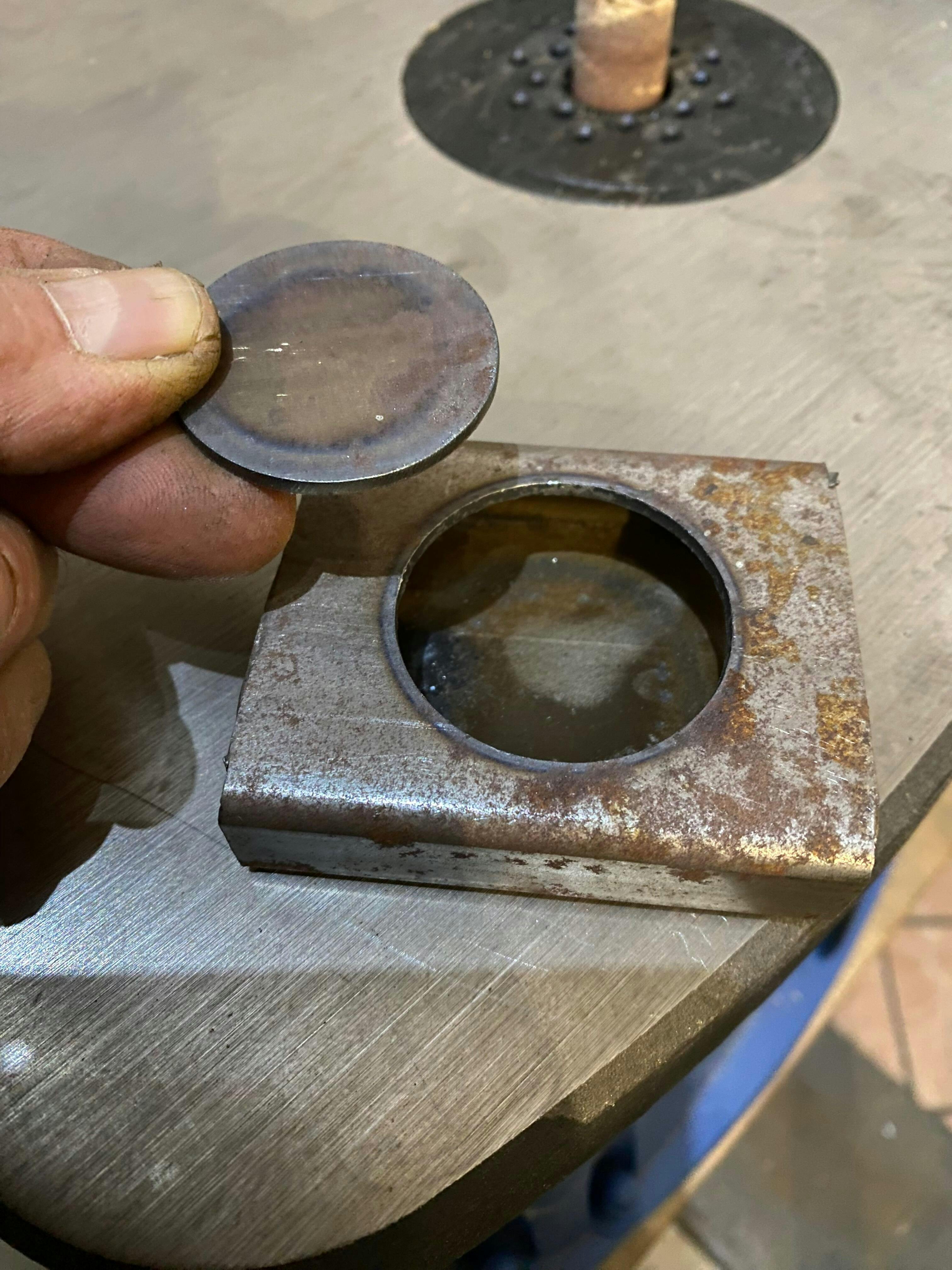

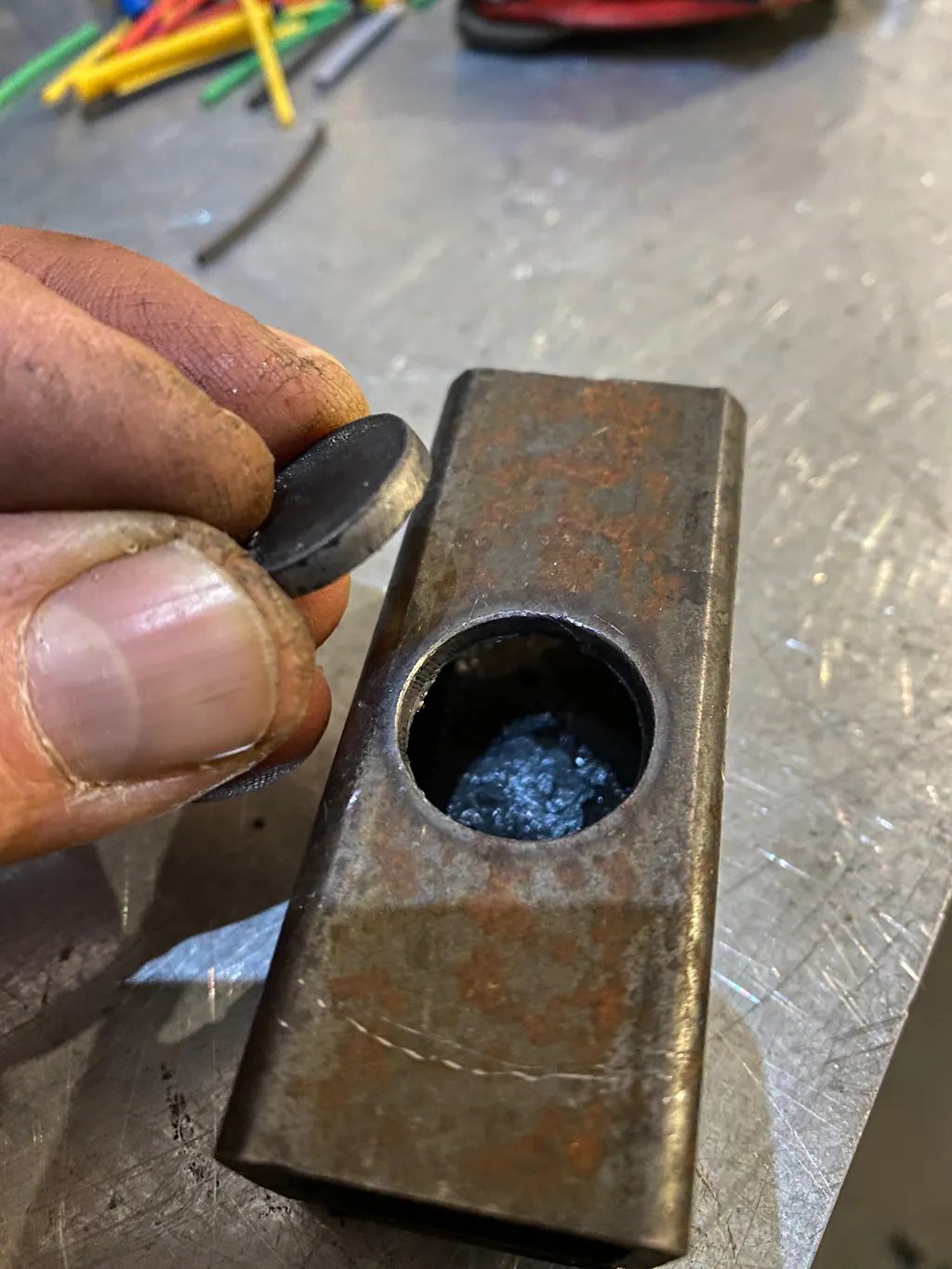

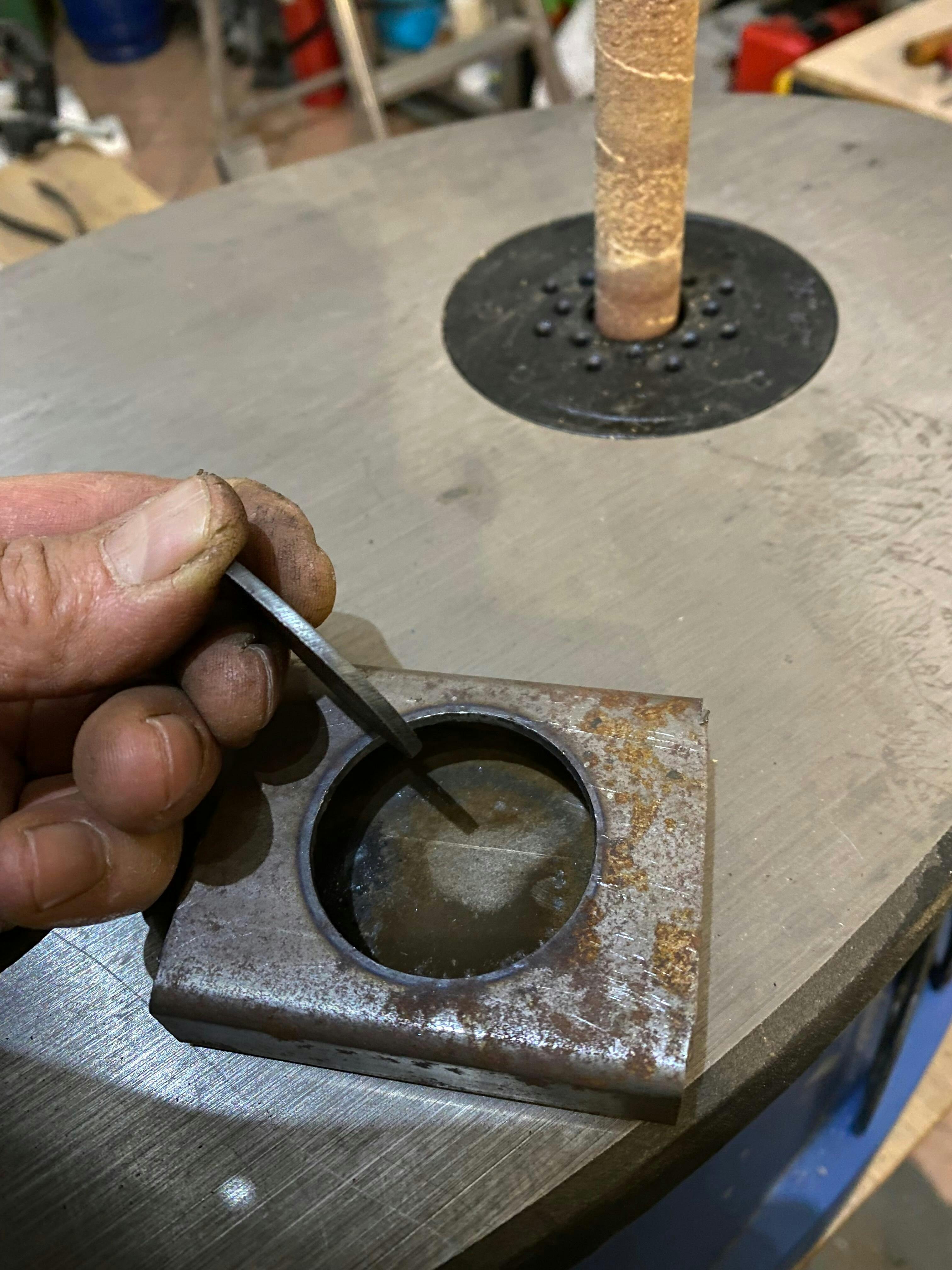

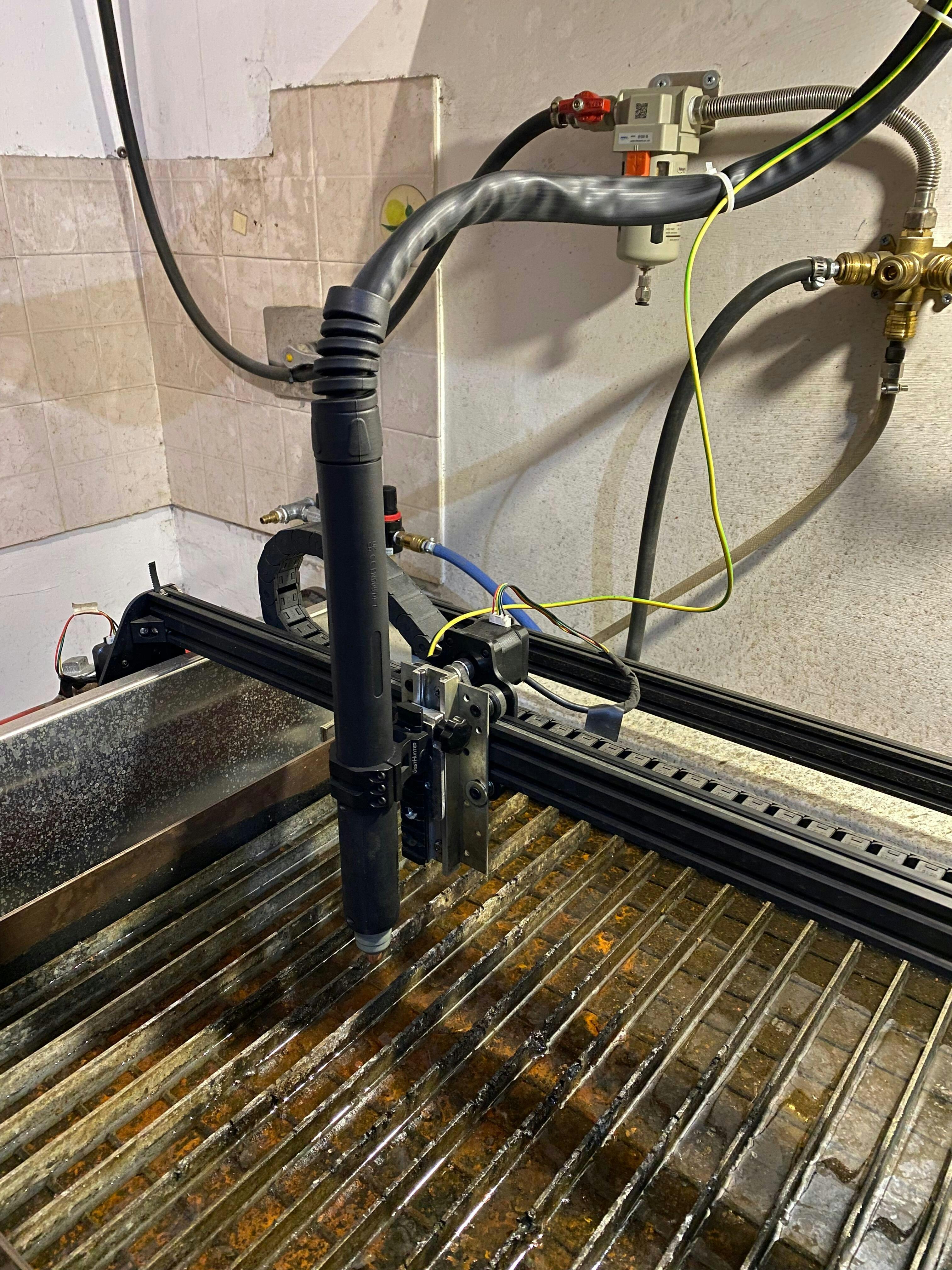

Alessio review photo Alessio review photo Alessio review photo Alessio review photo
M
Martin M.
Excellent

Very good quality and unbeatable performance for this price range.
