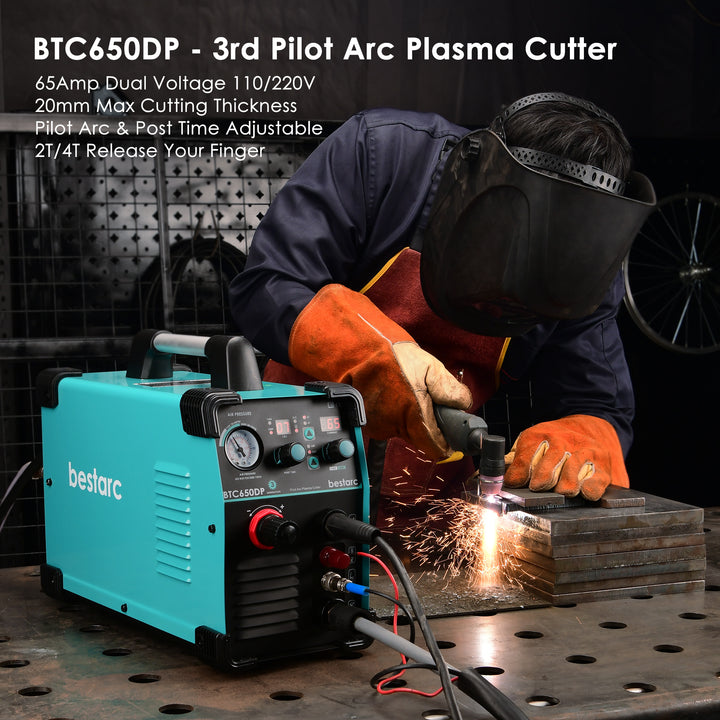

Plasma Cutter, Pilot Arc BTC650DP 3rd Generation 65Amps Dual Voltage

$349.99 USD $329.99 USD SAVE 6%

Get Black Friday deals, save 20% when you add to cart!

  • [Pilot Arc Function]: This plasma cutter has the pilot arc function. It is a high frequency non-touch arc starting mode. The torch head does not need to touch the metal plate. It can greatly extend the working life of consumables, and increase the cutting thickness; plasma cutter with this function can cut steel plates with rust and paint on the surface.
  • [Automatic Cutting]: 2T is semi-automatic cutting control, 4T is automatic cutting control. Switch to 2T, press and hold the torch switch to start arc and cutting, release the switch to stop arc and cutting. Switch to 4T, press the torch switch to start the arc and cutting.When you release the switch, the torch is still cutting.Press the switch again to stop the arc.
  • [Air Pressure & Air Compressor]: The regulator and gauge are installed in front of the panel,you can read the air pressure value through the air gauge. We recommend air pressure value be in the range of 40-90 PSI. You can also adjust the air pressure through the regulator. The air filter has been installed on the rear of machine with a quick air connector, and the user can use it after connecting with the air compressor. Recommended air compressor 250L/min.
  • [Cutting Thickness]: The machine is equipped with a current display. You can choose the current to match the air pressure through the cutting chart which mention in manual, expediently and efficiently. Current display at 110V is 15-40A, Under 220V current display is 15-65A, the maximum cutting thickness is recommended to be 14mm @ 40A 110V, 45PSI; 20mm@65A 220V, 70 PSI.
  • [Post Time Function]: BTC650DP with post time function, the adjustment range is 2-15 seconds. This function can be adjusted by yourself extend or shorten the cooling time of the torch head, effectively provide cooling, and extend the working life of consumables. Users can adjust the cooling time required to fully cool the torch head. In generally, we recommend a cooling time of 4-8 seconds, if the Plasma cutter worked too long please cool it for 10-12 seconds.
Compare

visamasteramerican expresspaypalmaestroshopify paygoogle payapple pay
Description

BTC650DP 7GEN BTC650DP 3GEN BTC500DP 7GEN BTC500DP 3GEN BTC500DP 2GEN BTC450NP
Max Current 65 Amps 65 Amps 50 Amps 50 Amps 50 Amps 45 Amps
Voltage 110/220V 110/220V 110/220V 110/220V 110/220V 110/220V
Clean Cutting
Thickness
220V-14mm | 110V-12mm 220V-14mm | 110V-12mm 220V-12mm | 110V-10mm 220V-12mm | 110V-10mm 220V-12mm | 110V-10mm 220V-10mm |110V-8mm
Cutting Thickness
Severance
220V-20mm@70psi |
110V-16mm@70psi
220V-20mm@70psi | 110V-16mm@70psi 220V-16mm@65psi | 110V-12mm@65psi 220V-16mm@65psi | 110V-12mm@65psi 220V-16mm@65psi | 110V-12mm@65psi 220V-14mm@60psi | 110V-12mm@60psi
Duty Cycle 60% 60% 60% 60% 60% 60%
Digital Screen × × × × ×
Cutting Material Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc. Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc. Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc. Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc. Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc. Various alloy steel/ Stainless steel/ Mild steel/ Copper/ Aluminum, etc.
Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Charles Dabbs
Best little powerhouse

Bought this for farm projects and repair
Much of my work utilizing salvage materials on old and rusty equipment couldn’t be more satisfied
First project was on 1/2 inch material which it cut like butter. Was at 80% amperage not sure what it’s actual capacity would be.
Starting on rusty material is a big plus for me and the pilot arc does this wonderful
Cut circles after plunge into the rust 1/2 inch thick flat stock clean and accurate enough for welding in sleeves
All in all impressed with the portable punch of this unit
Would be a great choice for a beginner you probably won’t need to step up to a better unit until you do professional commercial work.
